Valve Cover

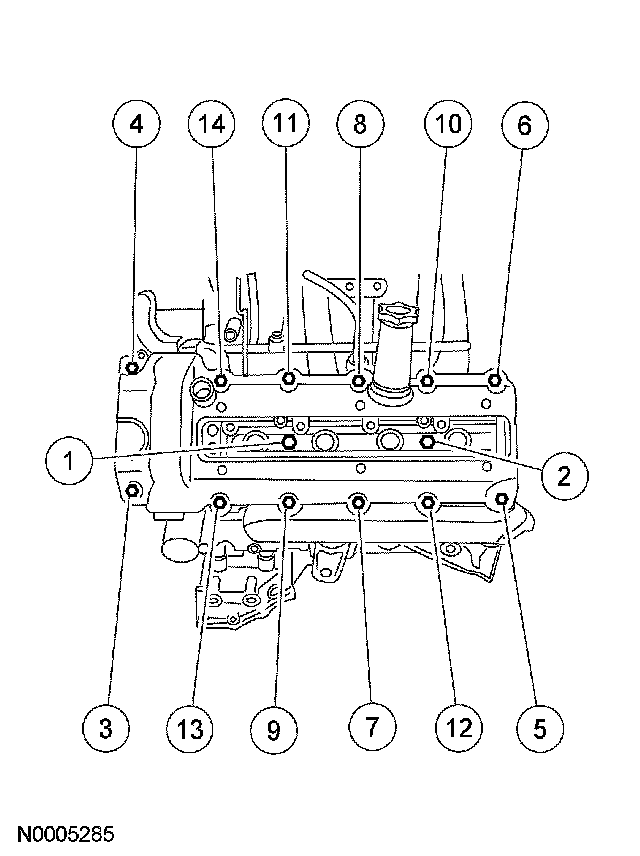

LH Valve Cover
Install the LH valve cover.
Tighten the bolts in the sequence shown to 10 Nm (89 inch lbs.).

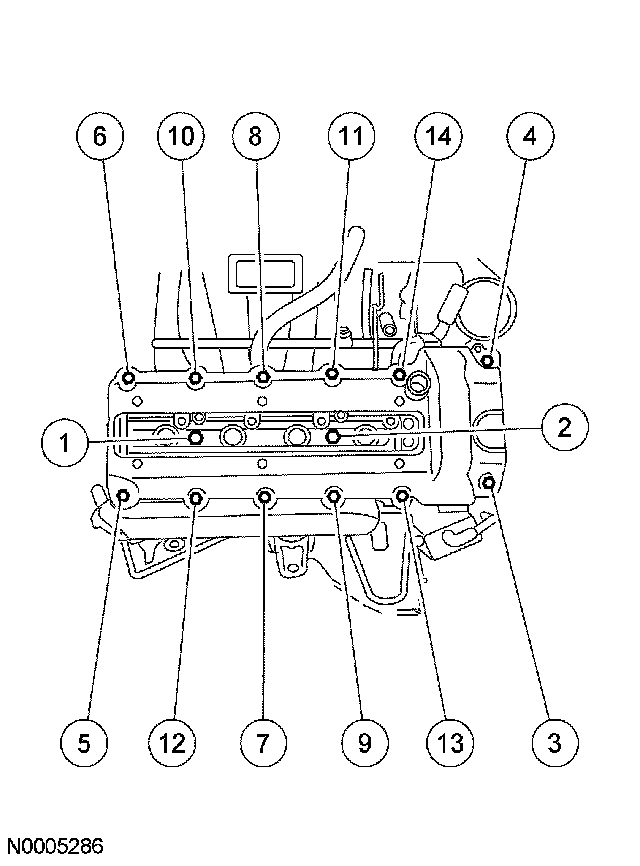

RH Valve Cover
Install the RH valve cover.
Tighten the bolts in the sequence shown to 10 Nm (89 inch lbs.).
