Home
>>
Ford
>>
2005
>>
Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Starter Motor
>>
Locations
Starter Motor: Locations

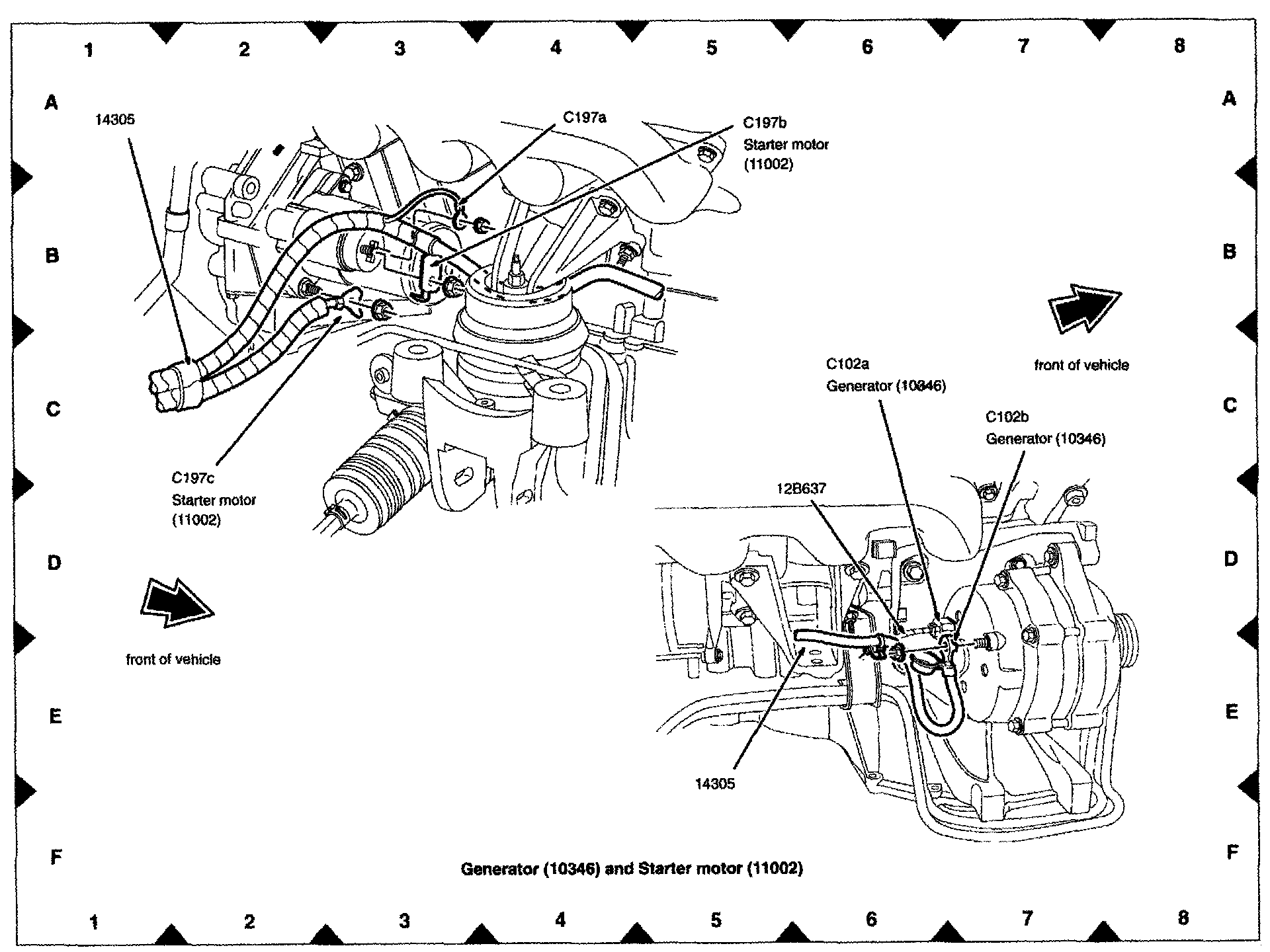

View 151-14 (Generator And Starter Motor):
