Window Frame: Service and Repair

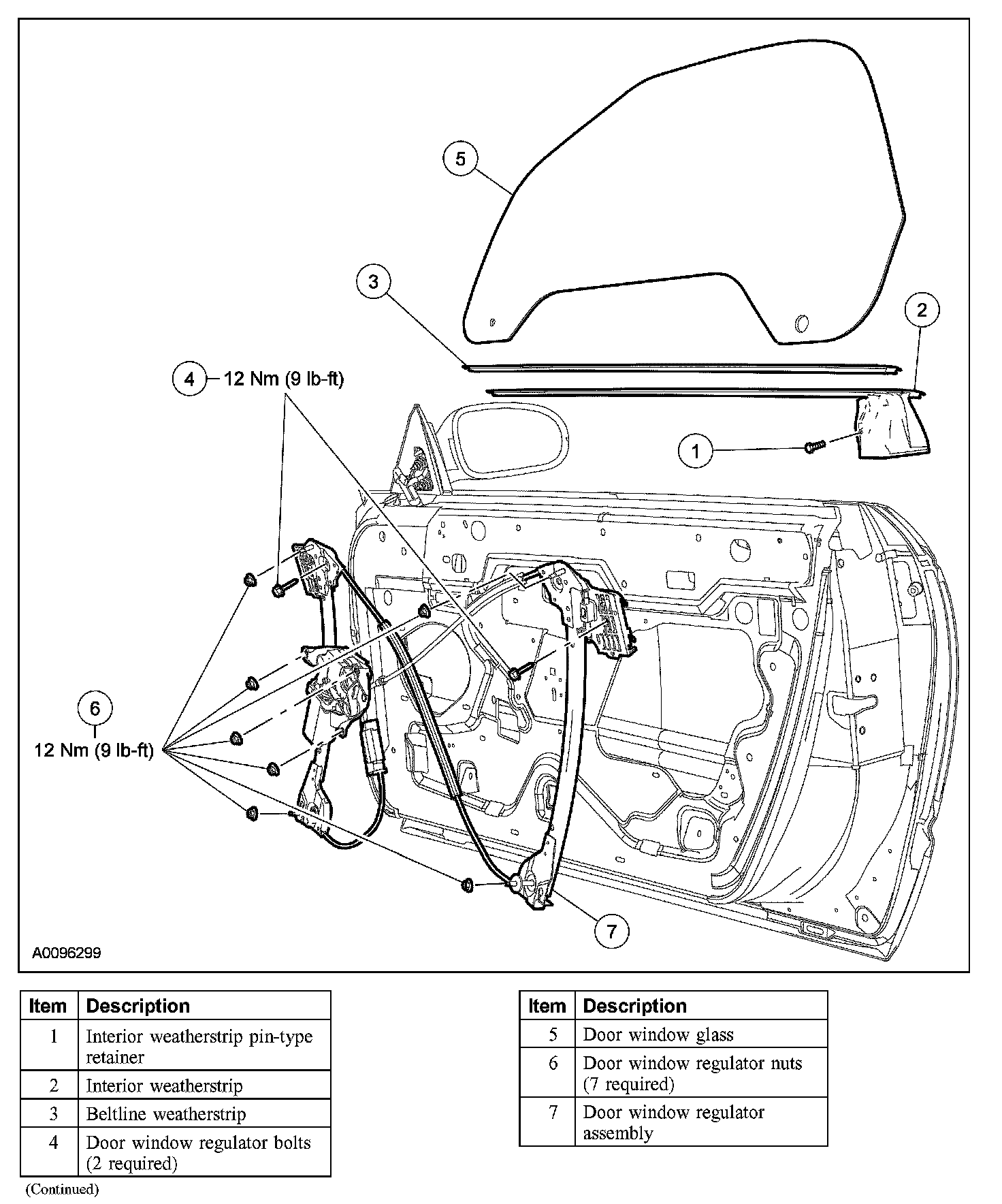

GLASS, FRAMES AND MECHANISMS - EXPLODED VIEW







Removal and Installation
1. For additional information, refer to the procedures.
