Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2007 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Clutch Pack

Clutch Pack

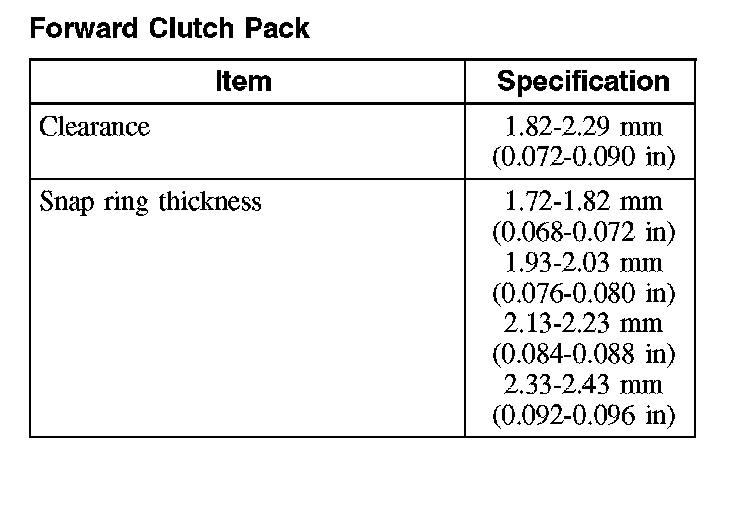

Forward Clutch Pack:

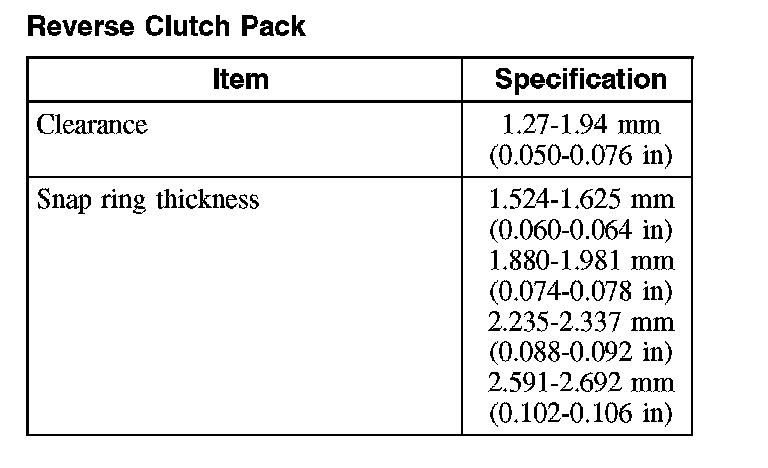

Reverse Clutch Pack:

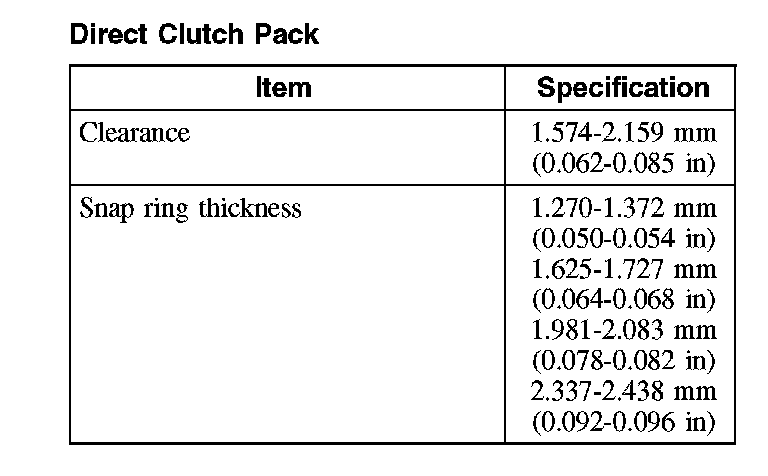

Direct Clutch Pack:

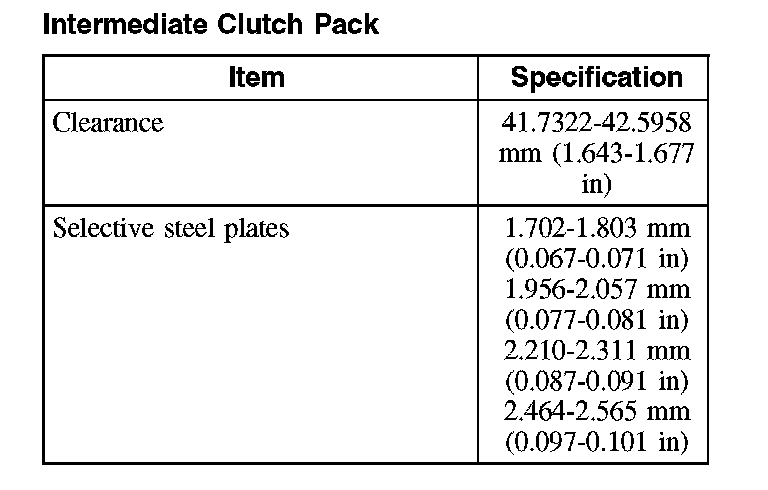

Intermediate Clutch Pack:
