Alternator Pulley / Clutch: Service and Repair

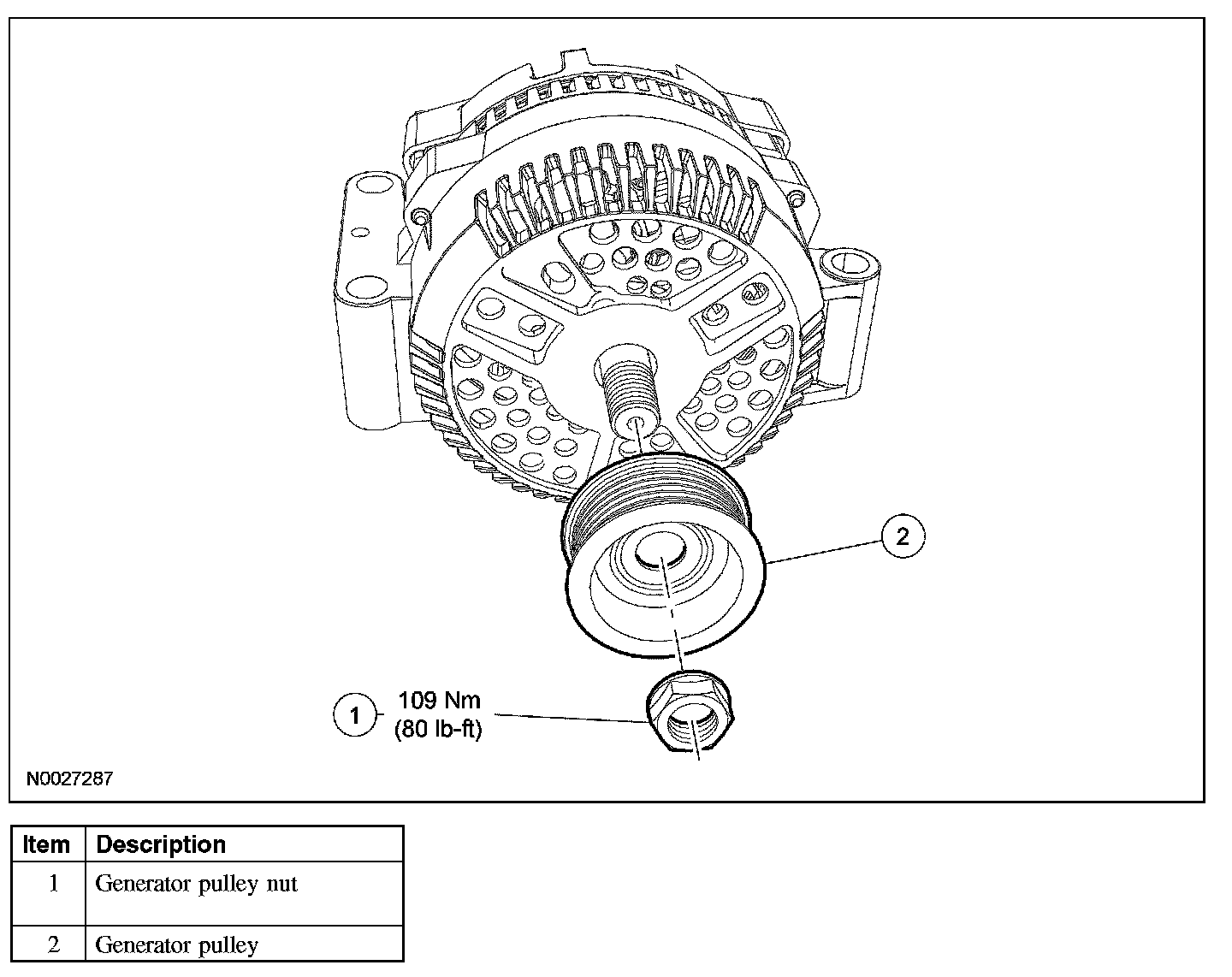

GENERATOR PULLEY
Removal and Installation
1. Remove the generator.
2. Remove the nut and the generator pulley.
- To install, tighten to 109 Nm (80 lb-ft).
3. To install, reverse the removal procedure.
Removal and Installation
1. Remove the generator.
2. Remove the nut and the generator pulley.
- To install, tighten to 109 Nm (80 lb-ft).
3. To install, reverse the removal procedure.
