Home >> Ford >> 2007 >> Mustang V8-4.6L VIN H >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Drive Belt

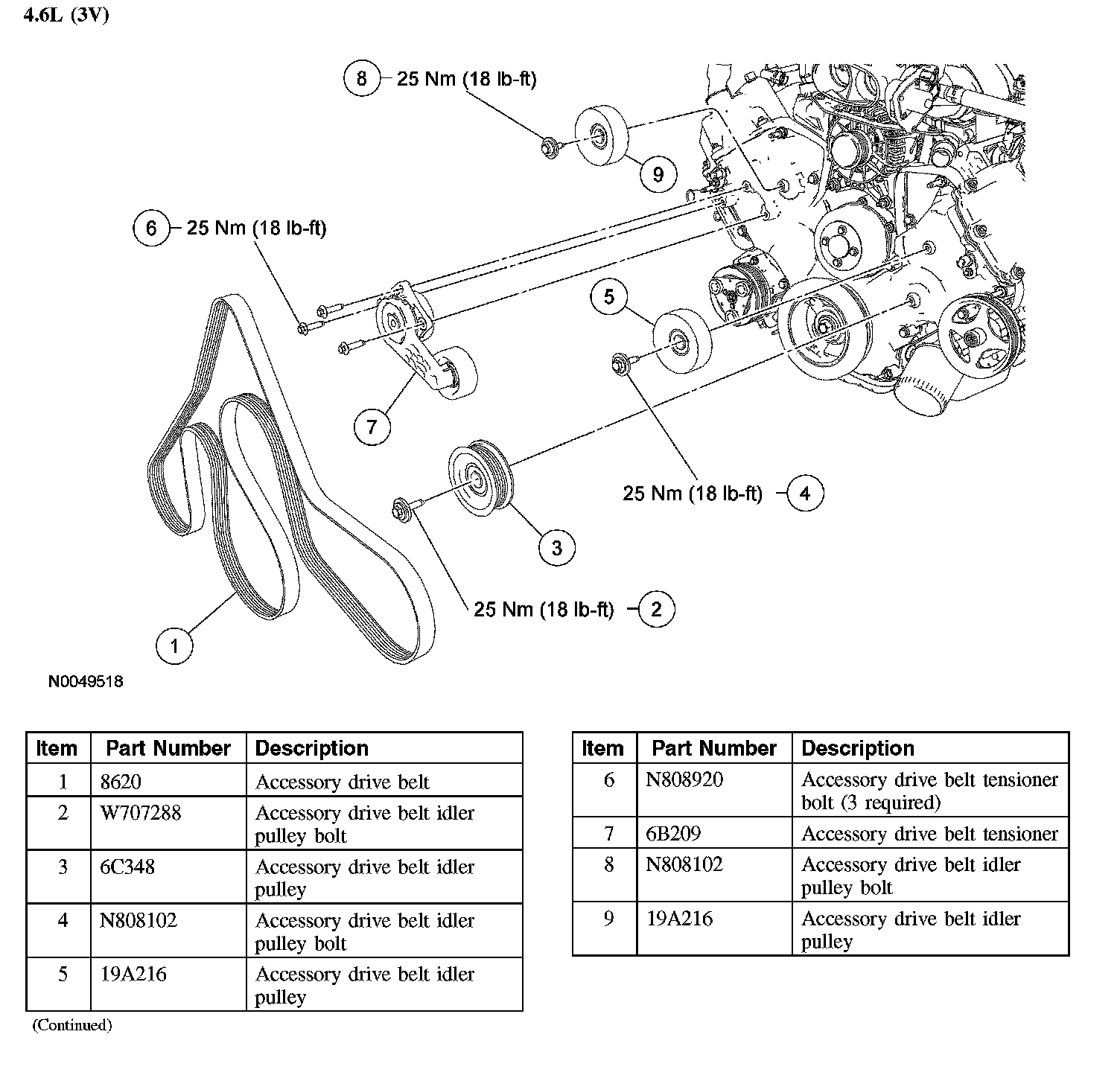

Drive Belt

4.6L (3V):
