Drive Belt: Service and Repair

Accessory Drive Belt - 4.6L (3V)

Removal and Installation

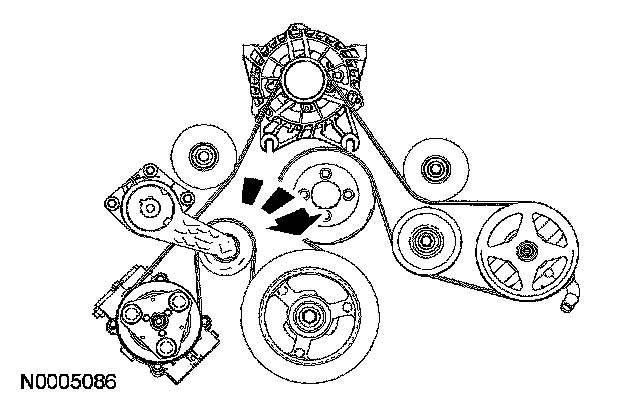

1. Using a suitable belt tensioner release tool, rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt.

2. NOTE: Refer to the illustration for correct drive belt routing.

To install, reverse the removal procedure.
