Flywheel

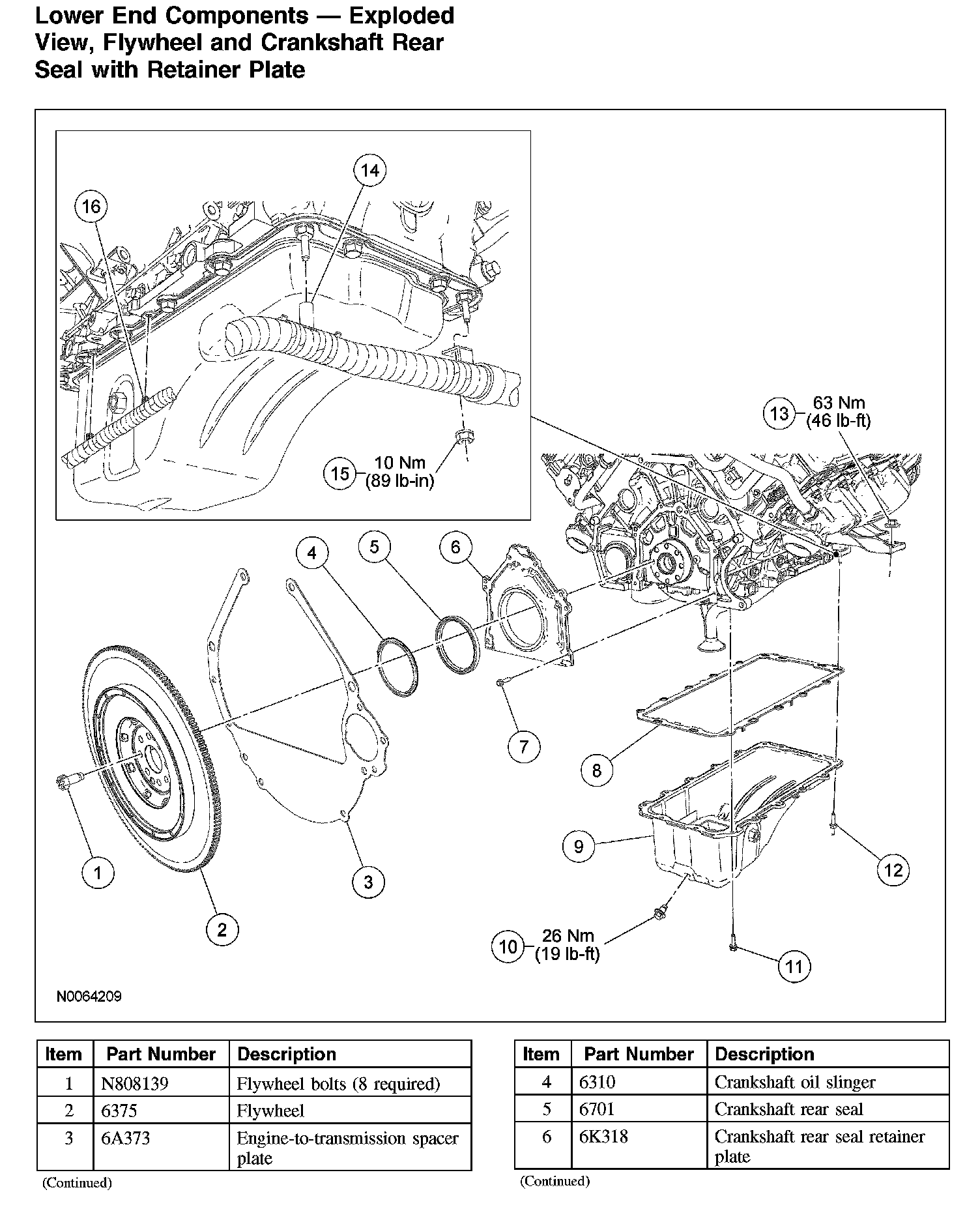

Lower End Components - Exploded View, Flywheel and Crankshaft Rear Seal with Retainer Plate:

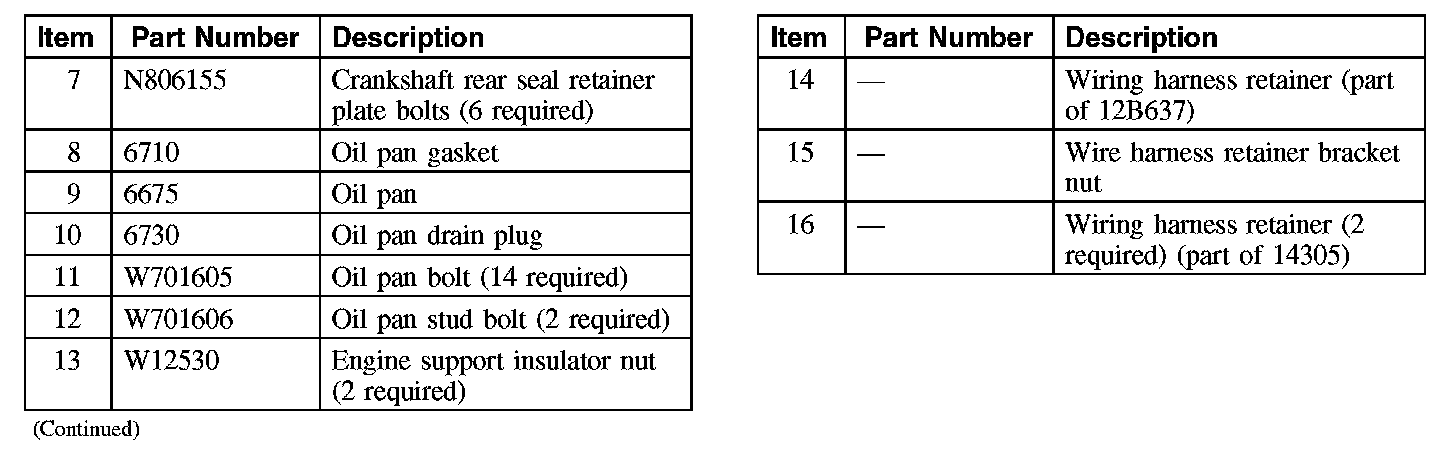

Lower End Components - Exploded View, Flywheel and Crankshaft Rear Seal with Retainer Plate:
