Air Register: Service and Repair

REGISTER - INSTRUMENT PANEL







Removal and Installation

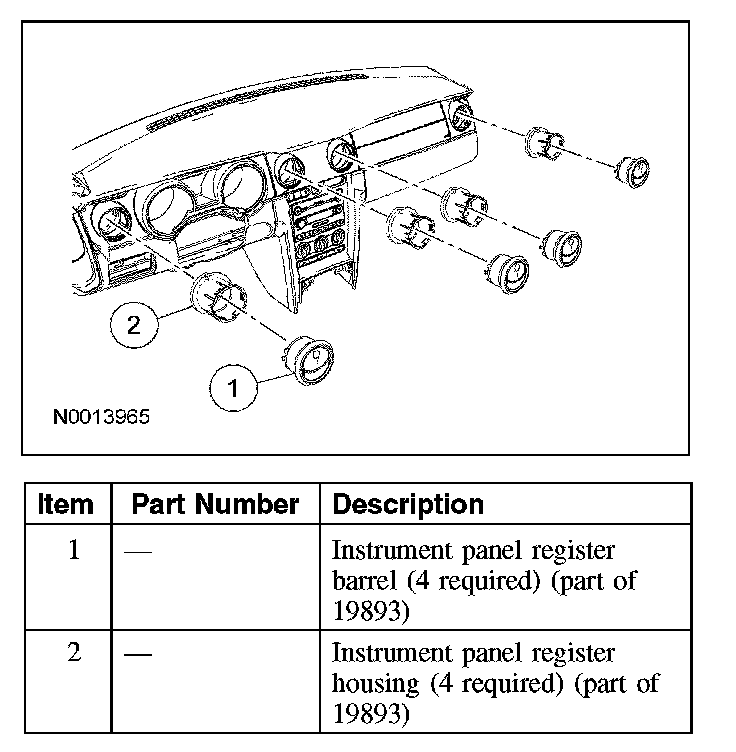

1. Pull and remove the instrument panel register barrel.
2. Release the tabs and remove the instrument panel register housing.
3. To install, reverse the removal procedure.
