Courtesy Lamp
>>
Interior / MAP Lamp Assembly, Third Row Seat
Interior / MAP Lamp Assembly, Third Row Seat

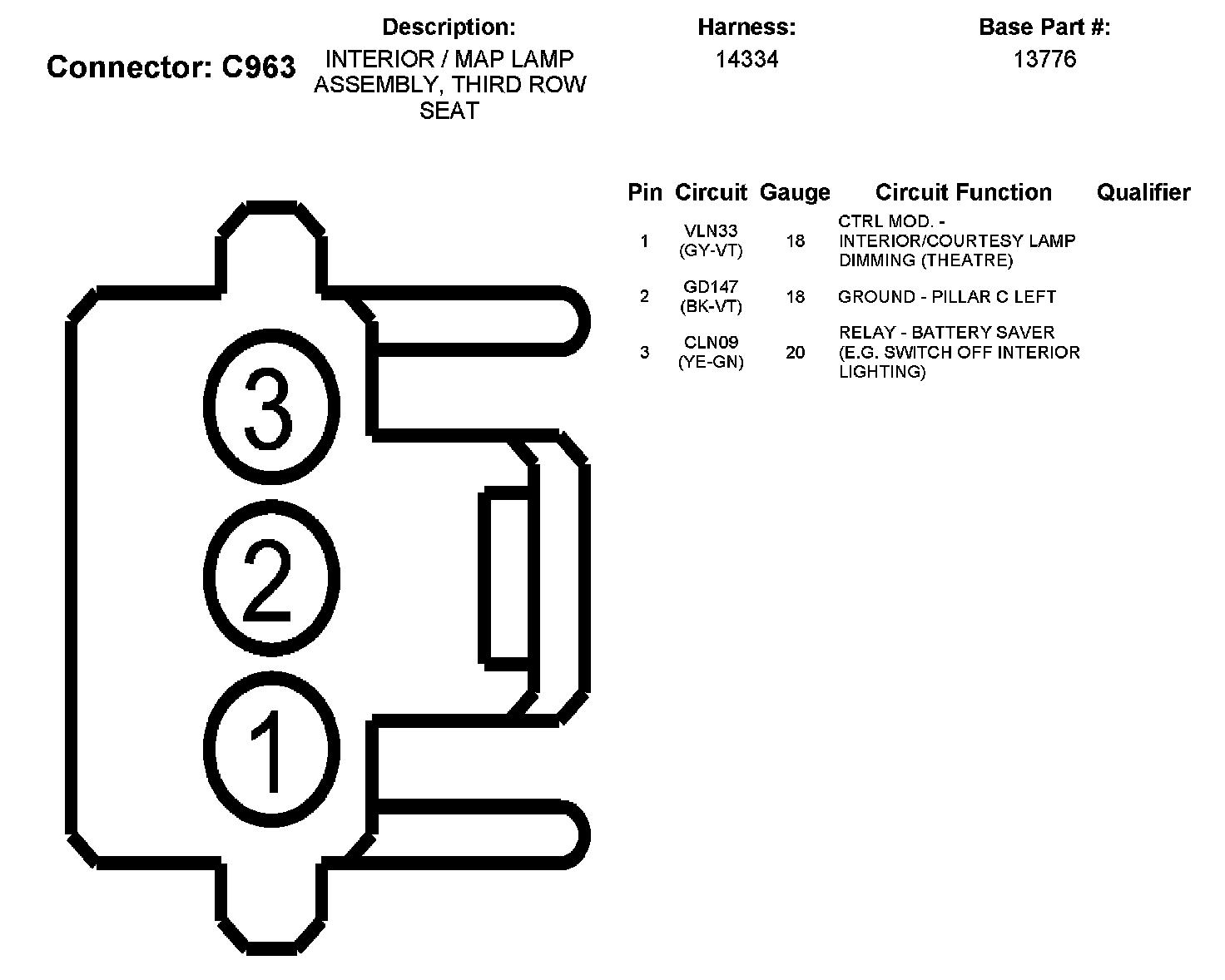

C963:
