Home >> Ford >> 2009 >> Crown Victoria V8-4.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 37 (Shift Interlock)

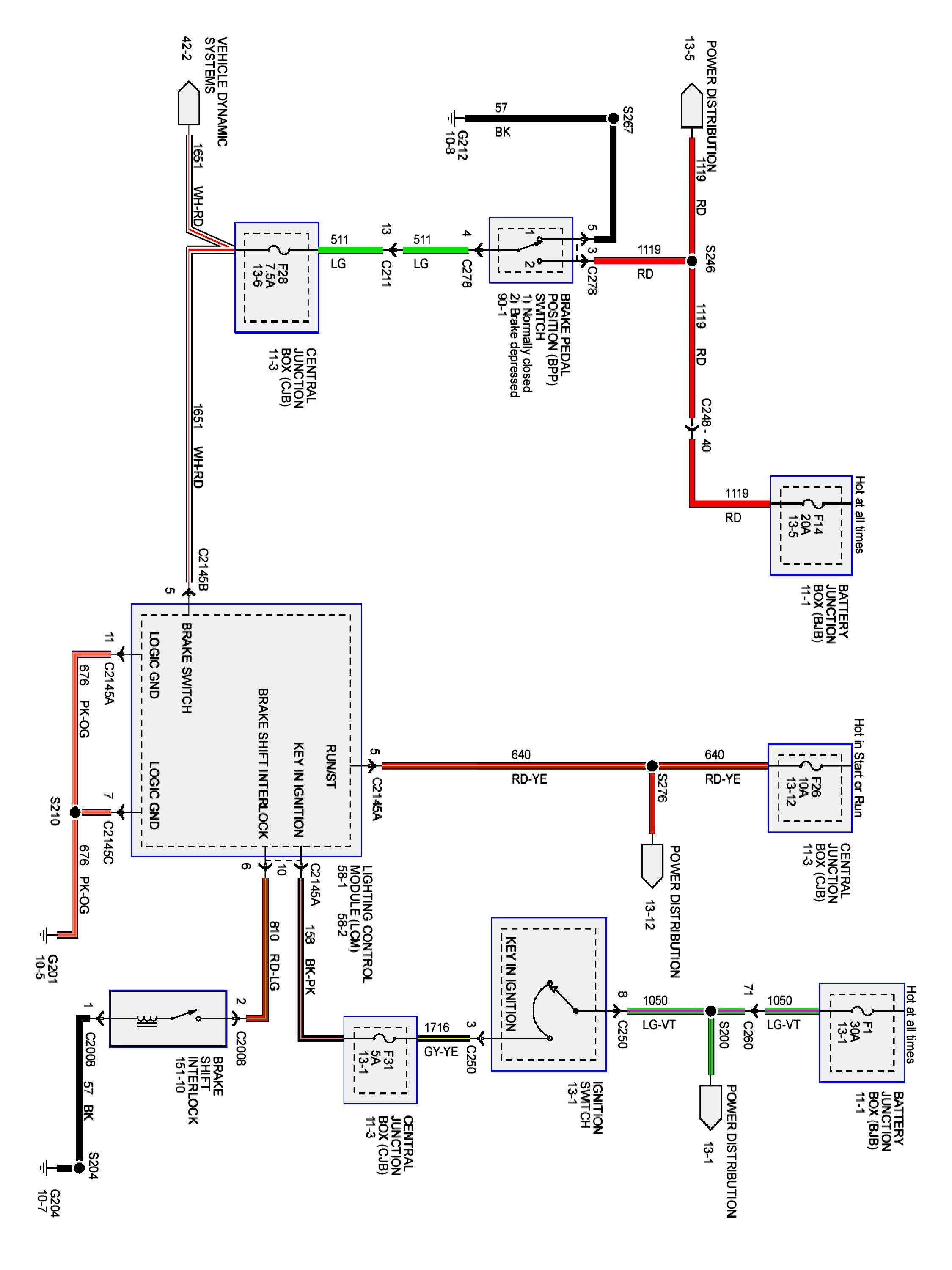

Diagram Set 37 (Shift Interlock)

37-1:
