Blower Motor Resistor: Testing and Inspection




Climate Control System

Component Tests

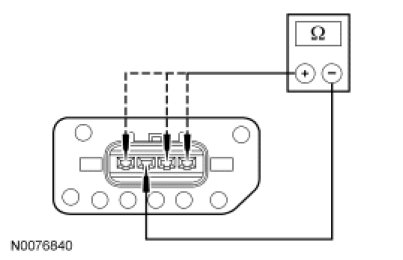

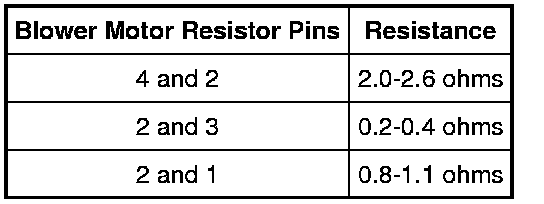

Resistor - Blower Motor
