Camshaft Bearing

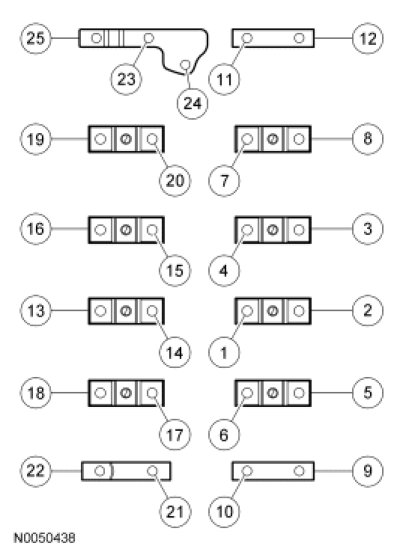

LH

Install the camshaft bearing caps.
Install the bearing cap bolts and tighten in the sequence shown to 10 Nm (89 lb-in).

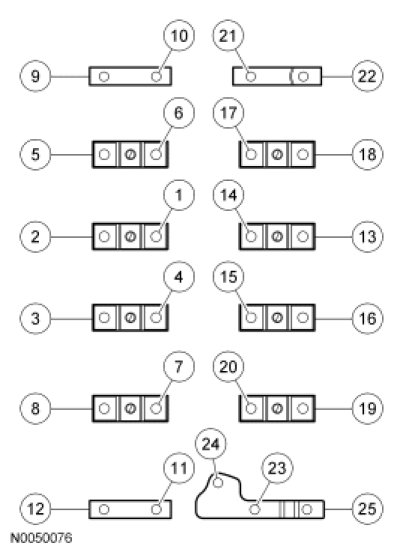

RH

Install the camshaft bearing caps.
Install the bearing cap bolts and tighten in the sequence shown to 10 Nm (89 lb-in).
