Register - Driver Side




Register - Driver Side, Taurus, Sable









Removal and Installation

1. Remove the instrument cluster finish panel. Instrument Cluster / Carrier

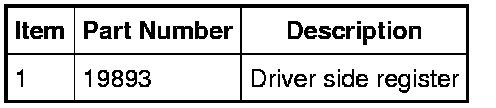

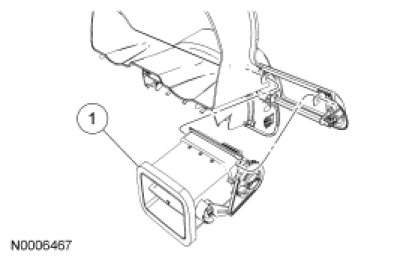

2. Release the 4 clips and remove the driver side register.

3. To install, reverse the removal procedure.
