Register - Passenger Side

Register - Passenger Side, Taurus, Sable

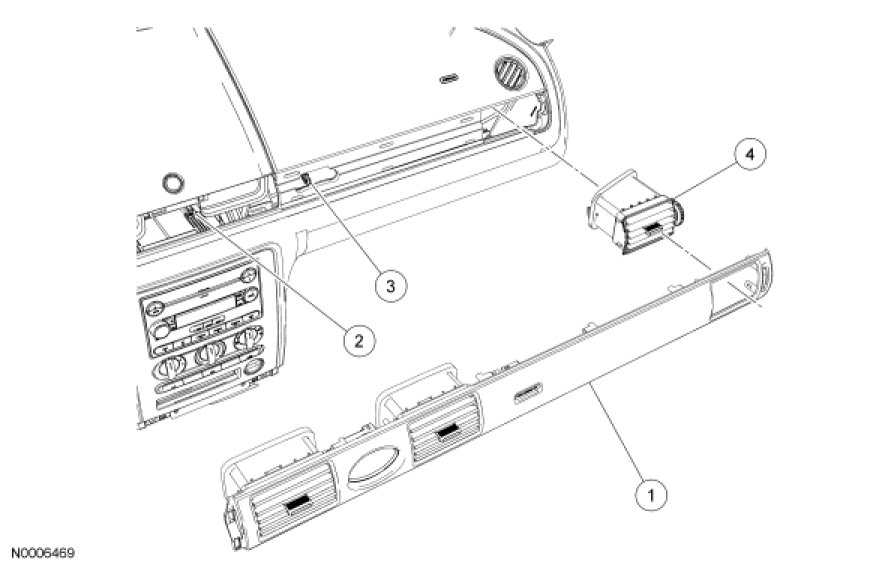

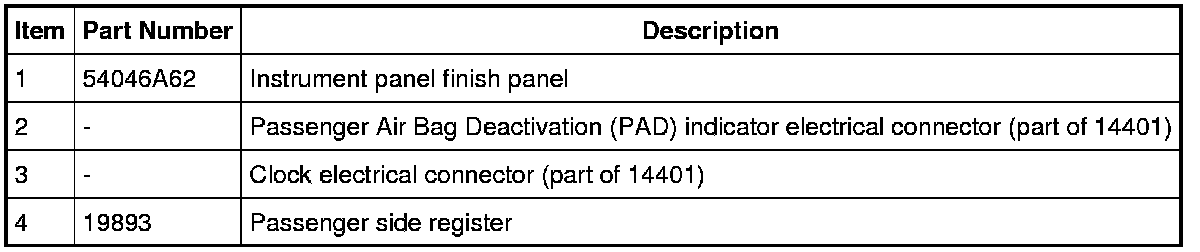

Removal and Installation

1. Remove the instrument cluster finish panel. Instrument Cluster / Carrier

2. Remove the instrument panel trim panel.

3. Disconnect the Passenger Air Bag Deactivation (PAD) indicator electrical connector.

4. Disconnect the clock electrical connector (if equipped).

5. Release the 4 clips and remove the passenger side register.

6. To install, reverse the removal procedure.
