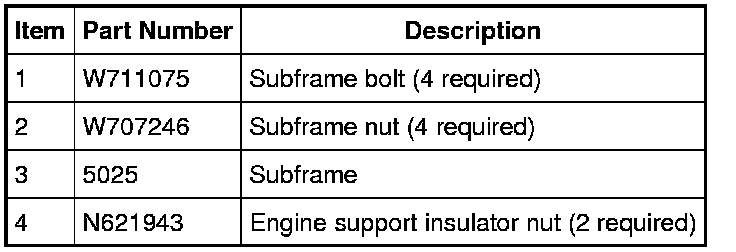

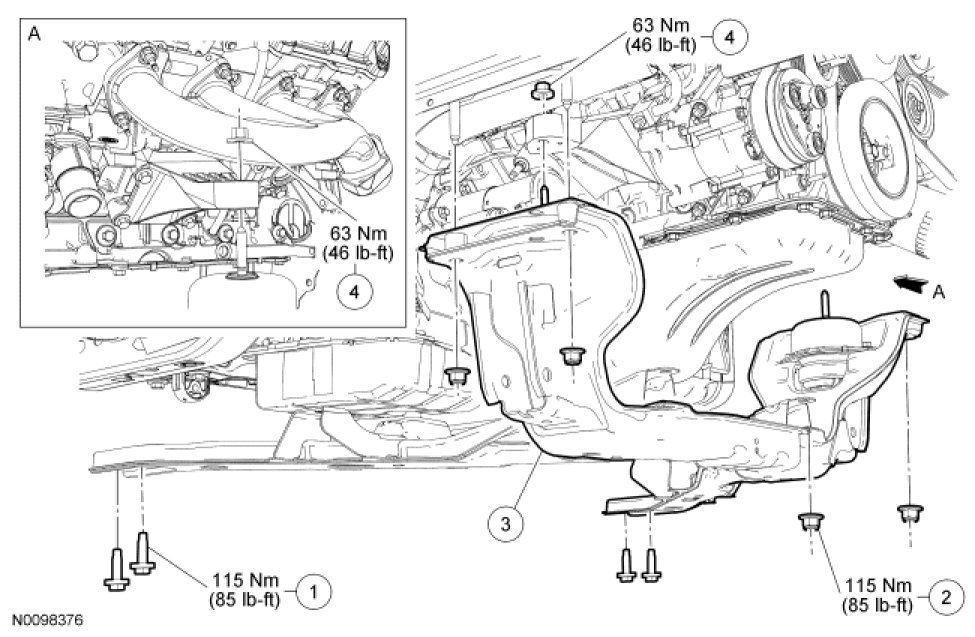

Subframe and Engine Support Insulators - Exploded View
Subframe and Engine Support Insulators - Exploded View
Engine Lubrication
Components - Exploded View
Subframe and Engine Support Insulators
