Register - Driver Side

Register - Driver Side

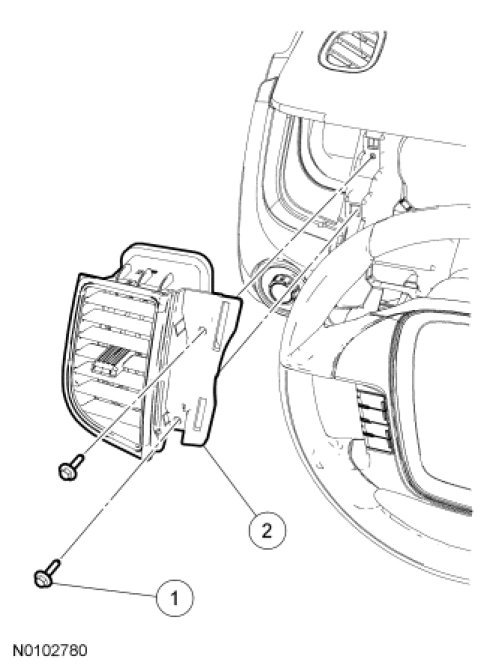

Removal and Installation

1. Remove the instrument cluster finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim. Instrument Cluster / Carrier

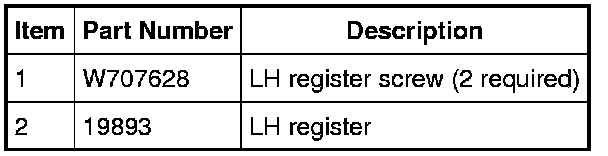

2. Remove the 2 LH register screws.

3. Remove the LH register.

4. To install, reverse the removal procedure.
