Register - Center

Register - Center

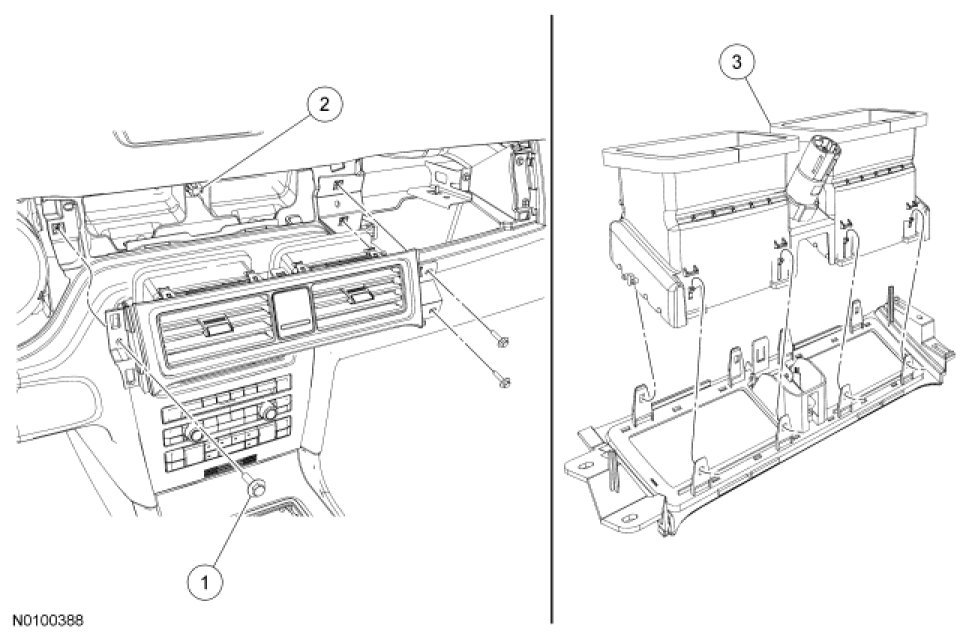

Removal and Installation

1. Remove the instrument cluster finish panel. For additional information, refer to Instrument Panel and Console Instrument Panel - Exploded View.

2. Remove the passenger airbag module. For additional information, refer to Supplemental Restraint System Passenger Air Bag Module.

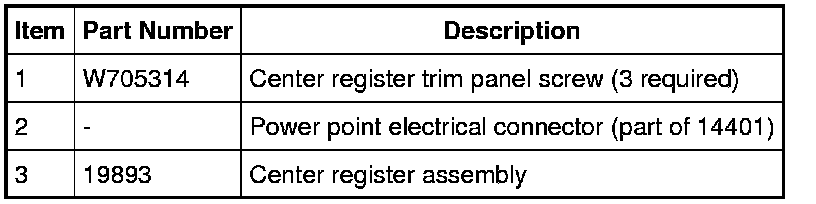

3. Remove the 3 center register trim panel screws.

4. Disconnect the power point electrical connector.

5. Release the 8 center register clips and remove the center register assembly.

6. To install, reverse the removal procedure.
