Register - Center

Register - Center, Fusion/Milan









Removal and Installation

1. Remove the instrument panel upper storage compartment.

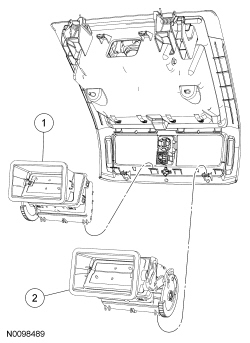

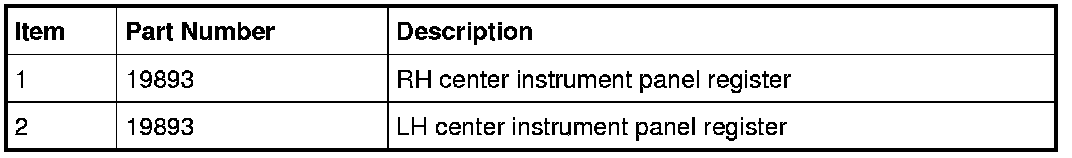

2. Release the clips on each register and remove the 2 center instrument panel registers.

3. To install, reverse the removal procedure.
