Register - Center

Register - Center

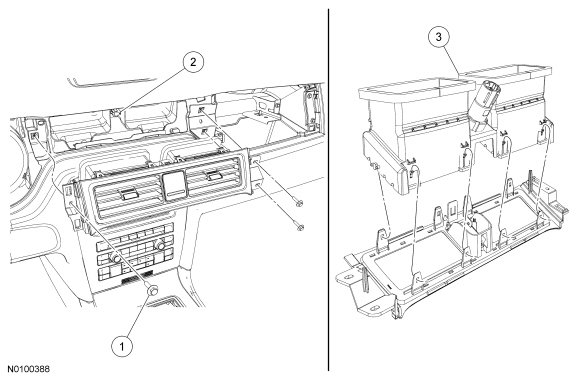

Removal and Installation

1. Remove the instrument cluster finish panel.

2. Remove the passenger airbag module.

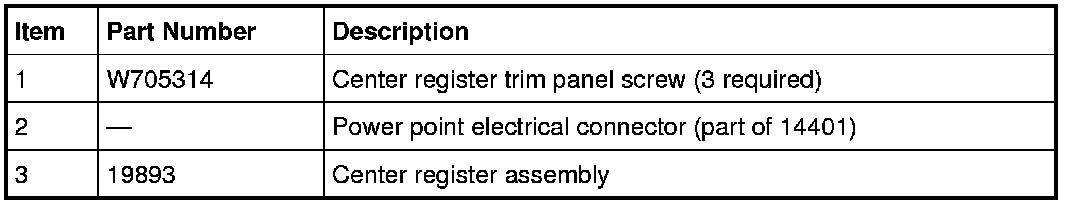

3. Remove the 3 center register trim panel screws.

4. Disconnect the power point electrical connector.

5. Release the 8 center register clips and remove the center register assembly.

6. To install, reverse the removal procedure.
