Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2012
>>
Mustang V8-5.4L SC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Air Register
>>
Service and Repair
>>
Register - RH
Register - RH
Register - RH

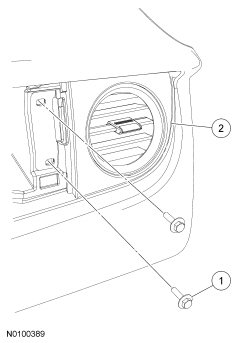

Removal and Installation
1.
Remove the passenger airbag module.

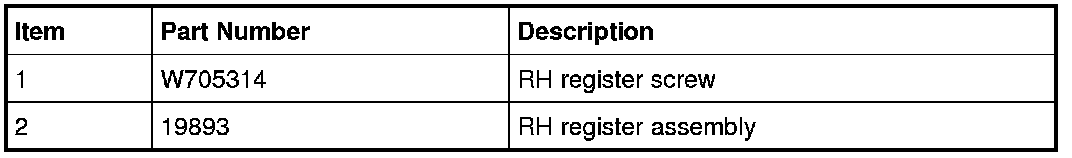

2.
Remove the 2 RH register screws.
3.
Remove the RH register.
4.
To install, reverse the removal procedure.
