Home >> GMC Truck >> 1993 >> S15/T15 2WD Jimmy V6-262 4.3L VIN W CPI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> With Automatic Transmission

With Automatic Transmission

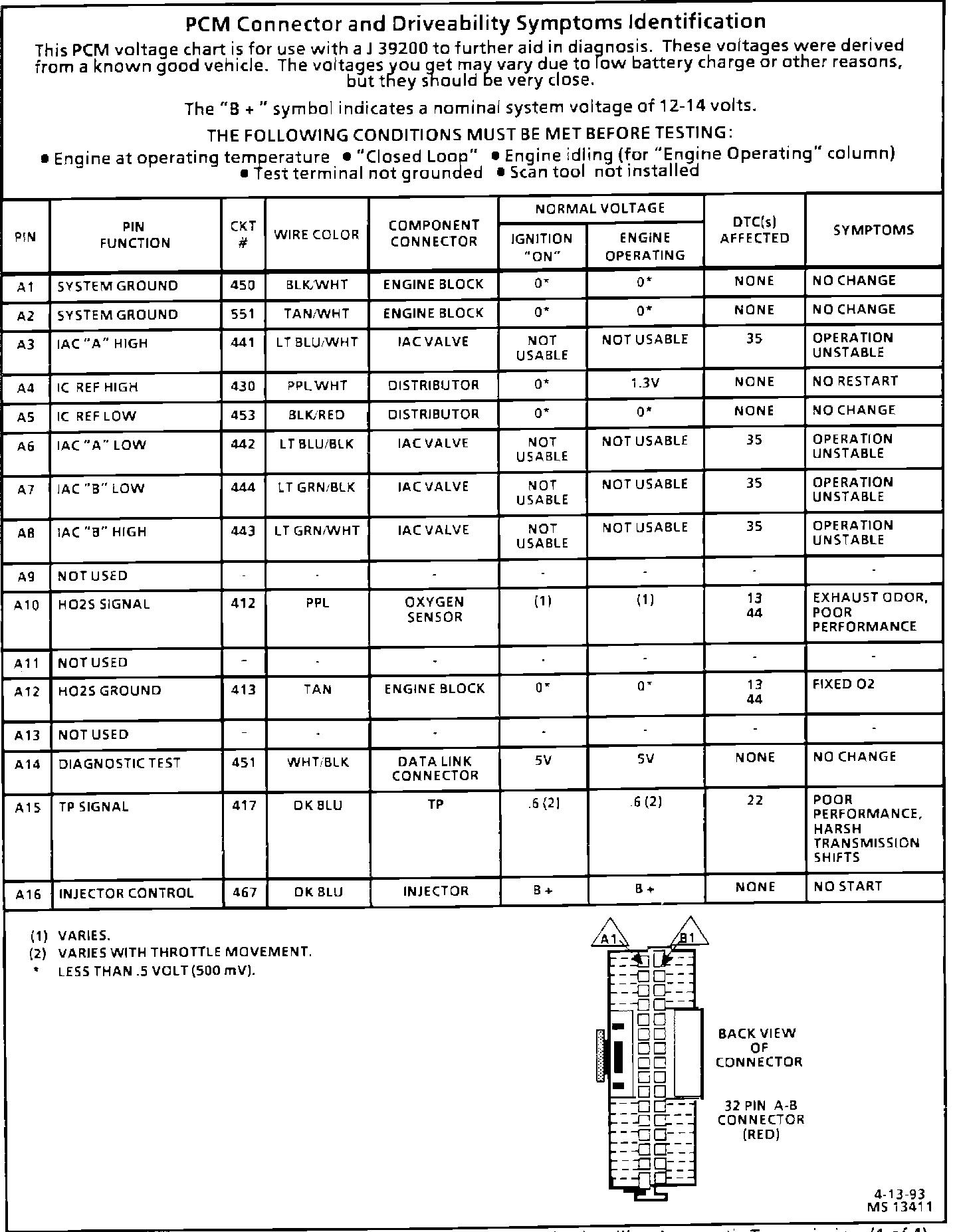

PCM Connector/Pinout Terminal - 4.3W S/T Utility Auto. (1 Of 4):






Part 1 of 4

PCM Connector/Pinout Terminal - 4.3W S/T Utility Auto. (2 Of 4):






Part 2 of 4

PCM Connector/Pinout Terminal - 4.3W S/T Utility Auto. (3 Of 4):






Part 3 of 4

PCM Connector/Pinout Terminal - 4.3W S/T Utility Auto. (4 Of 4):
