Fastener Tightening Specifications - Sequence

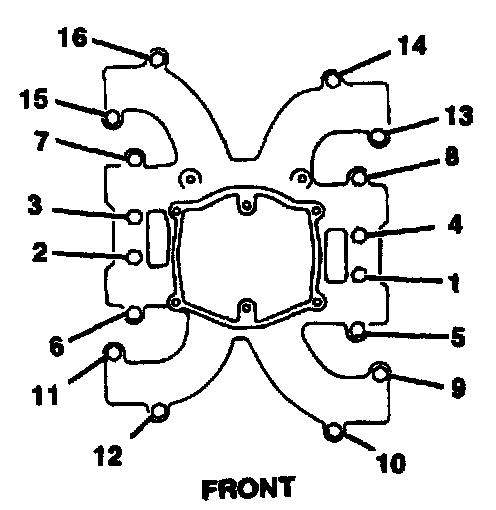

Intake Manifold Sequence (6.2L):



Intake Manifold Sequence (6.5L):
