Coolant Temperature Sensor/Switch (For Computer)

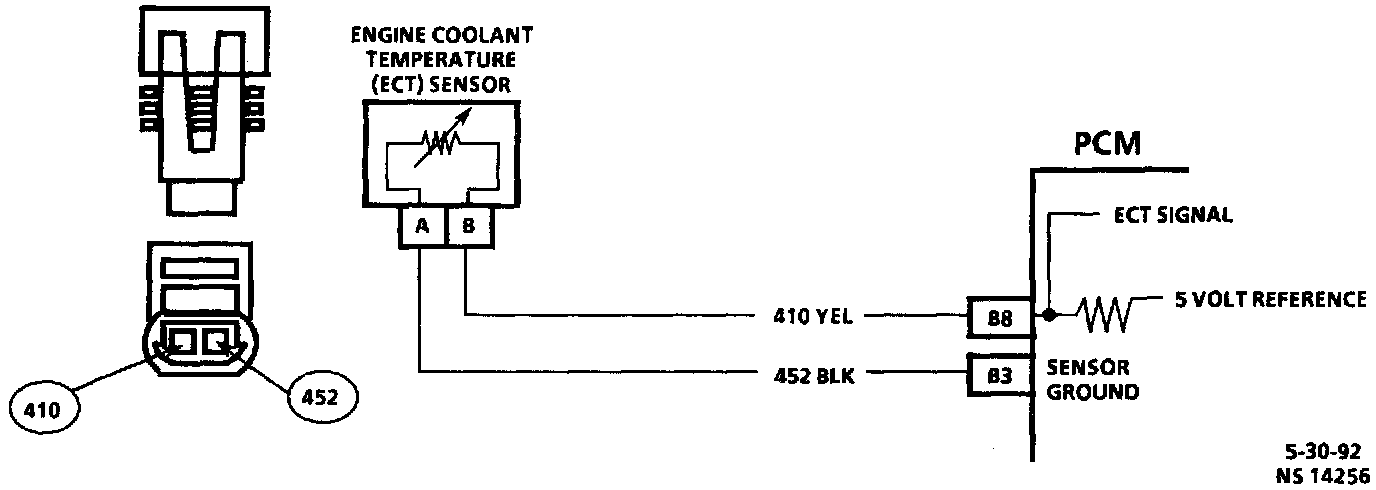

Engine Coolant Temperature (ECT) Sensor Circuit:

Engine Coolant Temperature (ECT) Circuit:
