Enabling the SIR System

Important
With the AIR BAG Fuse removed and the Ignition switch in the RUN position, the AIR BAG warning lamp Illuminates. This is normal operation and does not indicate a SIR system malfunction.

Install or Connect
^ Remove the key from the ignition switch.

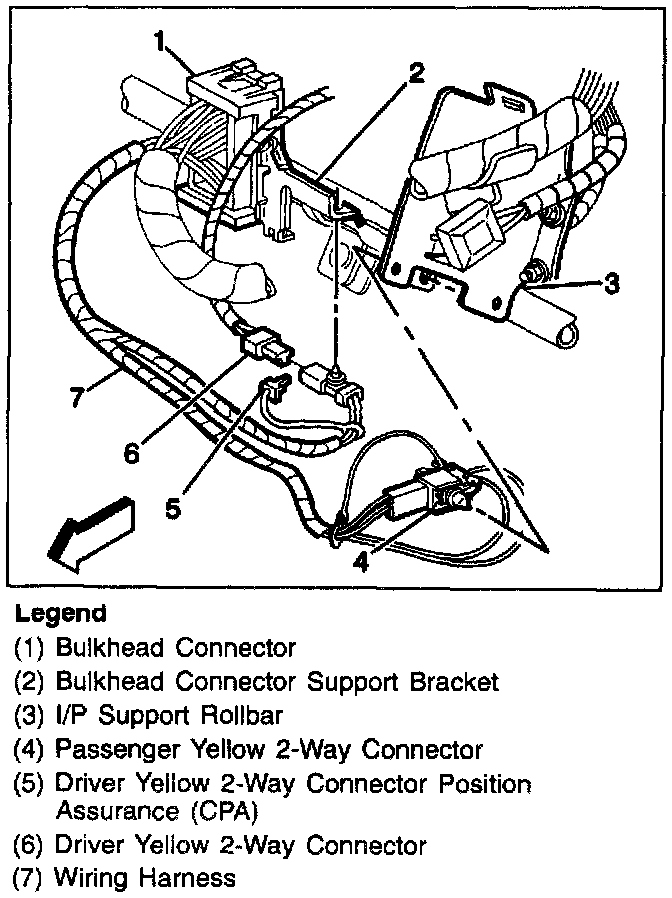

1. The passenger yellow 2-way connector and the CPA located near the base of the steering column.
2. The driver yellow 2-way connector and the CPA located at the base of the steering column.
3. The I/P sound insulator (LH).
4. The AIR BAG Fuse to the I/P fuse block. Staying well away from both air bags, turn the ignition switch to the RUN position. Verify that the AIR BAG warning lamp flashes seven times and then stays off. If the AIR BAG warning lamp does not operate as described, perform the SIR DIAGNOSTIC SYSTEM CHECK.
