Operation CHARM: Car repair manuals for everyone.
Home >> GMC Truck >> 1997 >> S15/T15 Sonoma P/U 4WD V6-4.3L VIN X >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Gray (C3) >> Pins 1-26

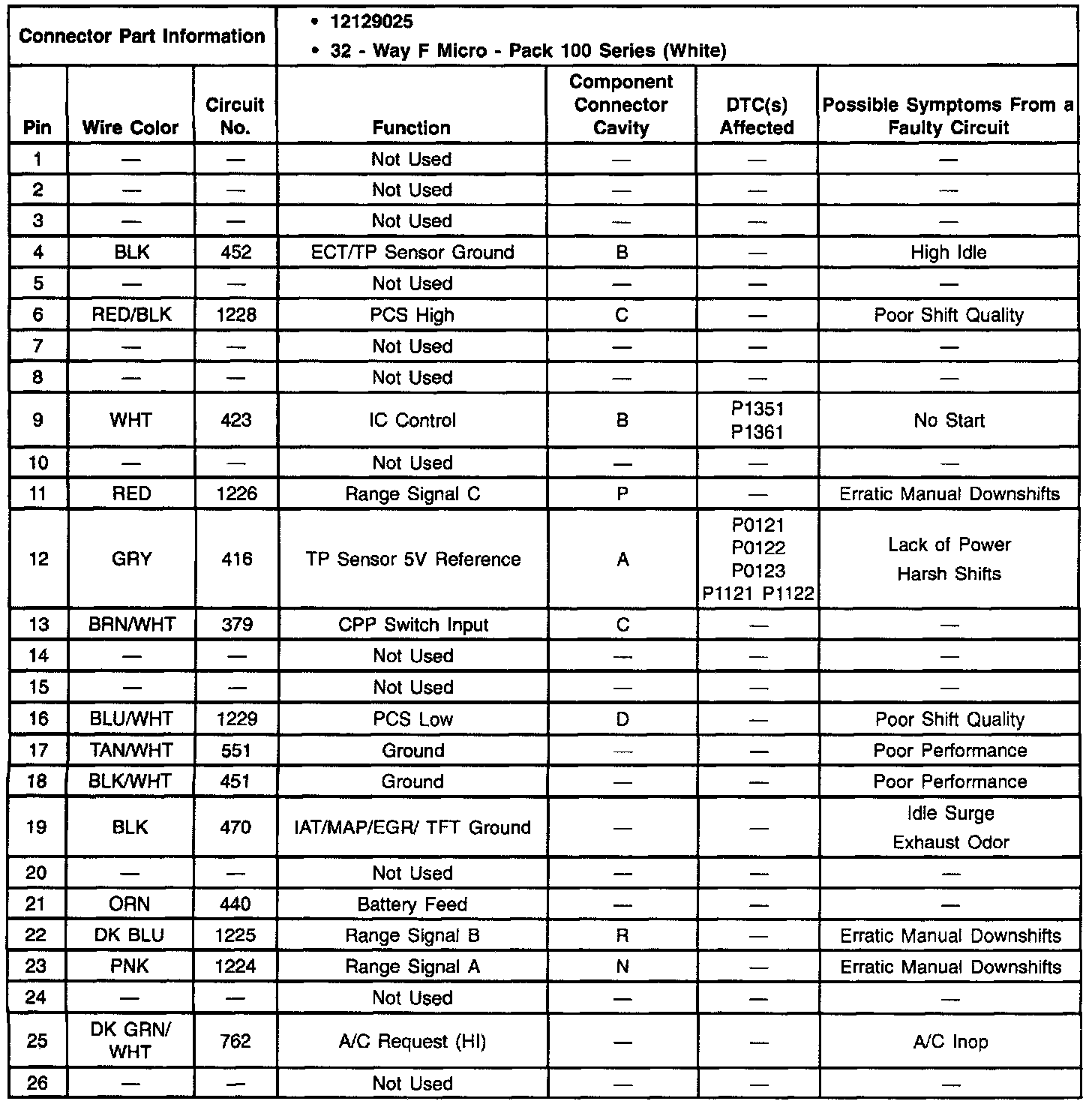

Pins 1-26

Description:
