Ground Strap Replacement

Additional ground straps are used to connect the body and the frame to the engine and the transmission. Always connect all ground straps to ensure a good ground path to the battery for all electrical components.
^ Engine ground strap connection to the engine (2.2L).

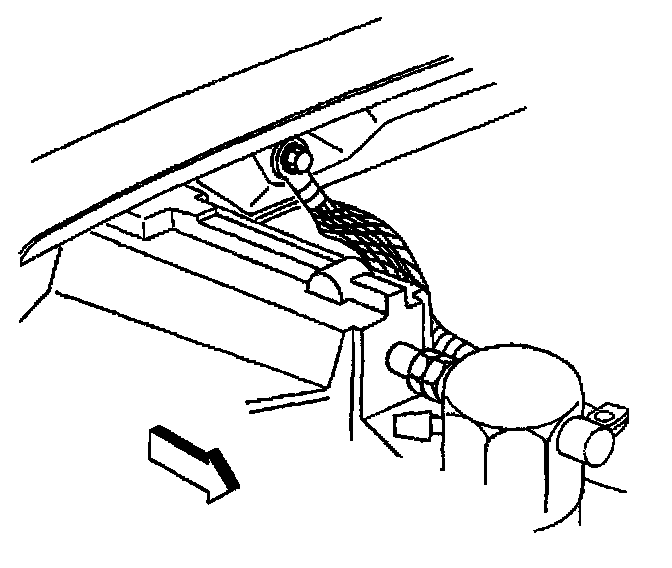

^ Engine ground strap connection to the cowl (2.2L).




^ Engine ground strap connection to the engine (4.3L).




^ Engine ground strap connection to the cowl (4.3L).
