Home >> GMC Truck >> 1998 >> S15/T15 Sonoma P/U 2WD L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> Control Assembly, HVAC >> Heater Controller >> C1

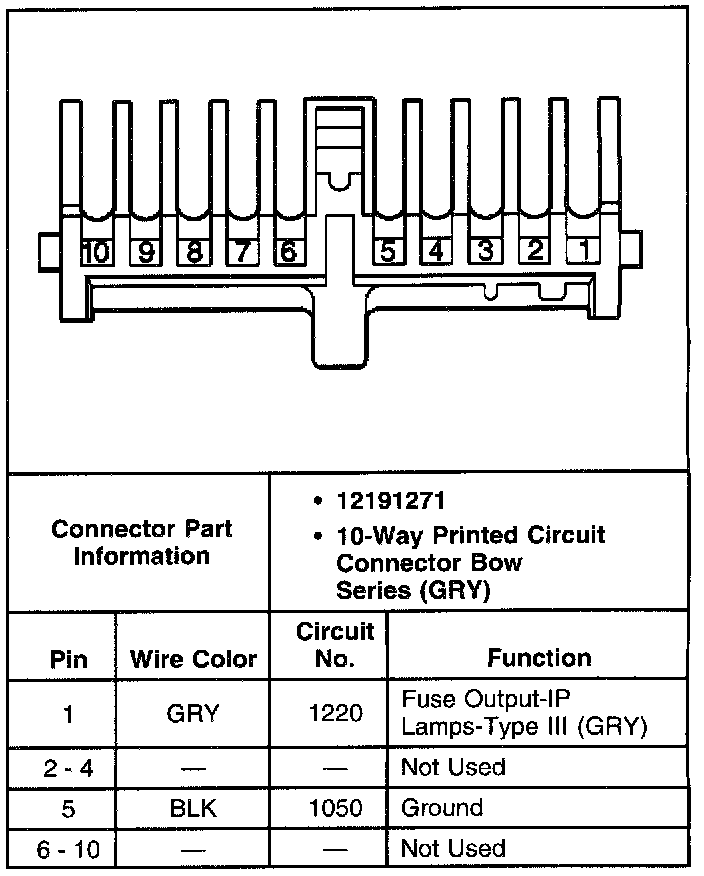

C1
