With Vehicle Control Module Only
Wiring Diagram:
CIRCUIT DESCRIPTION
The Automatic Transmission Input (Shaft) Speed (A/T ISS) Sensor provides transmission input speed to the Vehicle Control Module (VCM). The A/T ISS Sensor is a Permanent Magnet (PM) generator. The sensor mounts into the transmission case and maintains a slight air gap between the sensor and the Forward Clutch Housing. The PM generator produces an AC voltage as the Forward Clutch Housing rotor teeth pass through the sensor's magnetic field. The AC voltage level increases as the turbine shaft speed increases. The VCM converts the AC voltage into a digital signal. The VCM determines actual turbine speed using the digital signal. The VCM uses the input speed to calculate torque converter slip speed, and gear ratios.
When the VCM detects an unreasonably large change in the input speed, in a very short period of time, then DTC P0716 sets. DTC P0716 is a type D DTC. For California emissions vehicles, DTC P0716 is a type B DTC.
CONDITIONS FOR SETTING THE DTC
^ No Throttle Position (TP) Sensor DTCs P0121, P0122 or P0123.
^ No OSS Sensor DTC P0502 or P0503.
^ No A/T ISS Sensor DTC P0717.
^ No Shift Solenoid DTC P0751 or P0753.
^ The TP is greater than 10%.
^ The vehicle speed is greater than 25 mph.
^ The transmission is not in Park or Neutral.
^ The engine is running greater than 375 RPM for more than 7 seconds.
^ The input speed varies by 1300 RPM for greater than 5 seconds.
ACTION TAKEN WHEN THE DTC SETS
^ For California emission vehicles only, the VCM illuminates the Malfunction Indicator Lamp (MIL).
^ The VCM commands maximum line pressure.
^ The VCM freezes shift adapts.
^ DTC P0716 is stored in VCM history.
CONDITIONS FOR CLEARING THE MIL/DTC
^ For California emissions vehicles, the VCM turns OFF the MIL after three consecutive trips without a failure reported.
^ A scan tool can clear the DTC from the VCM history. The VCM clears the DTC from the VCM history if the vehicle completes 40 warm-up cycles without a failure reported.
^ The VCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the VCM.
DIAGNOSTIC AIDS
^ Inspect the wiring at the VCM, the Output Shaft Speed (OSS) Sensor connector and all other circuit connecting points for the following:
- A bent terminal
- A backed out terminal
- A damaged terminal
- Poor terminal tension
- A chafed wire
- A broken wire inside the insulation
- Moisture intrusion
- Corrosion
- The A/T ISS sensor harness being near the DIS components or the ignition wires.
^ When diagnosing for an intermittent short or open, massage the wiring harness while watching the test equipment for a change.
^ First diagnose and clear any engine DTCs or TP Sensor codes that are present. Then inspect for any transmission DTCs that may have reset.
TEST DESCRIPTION

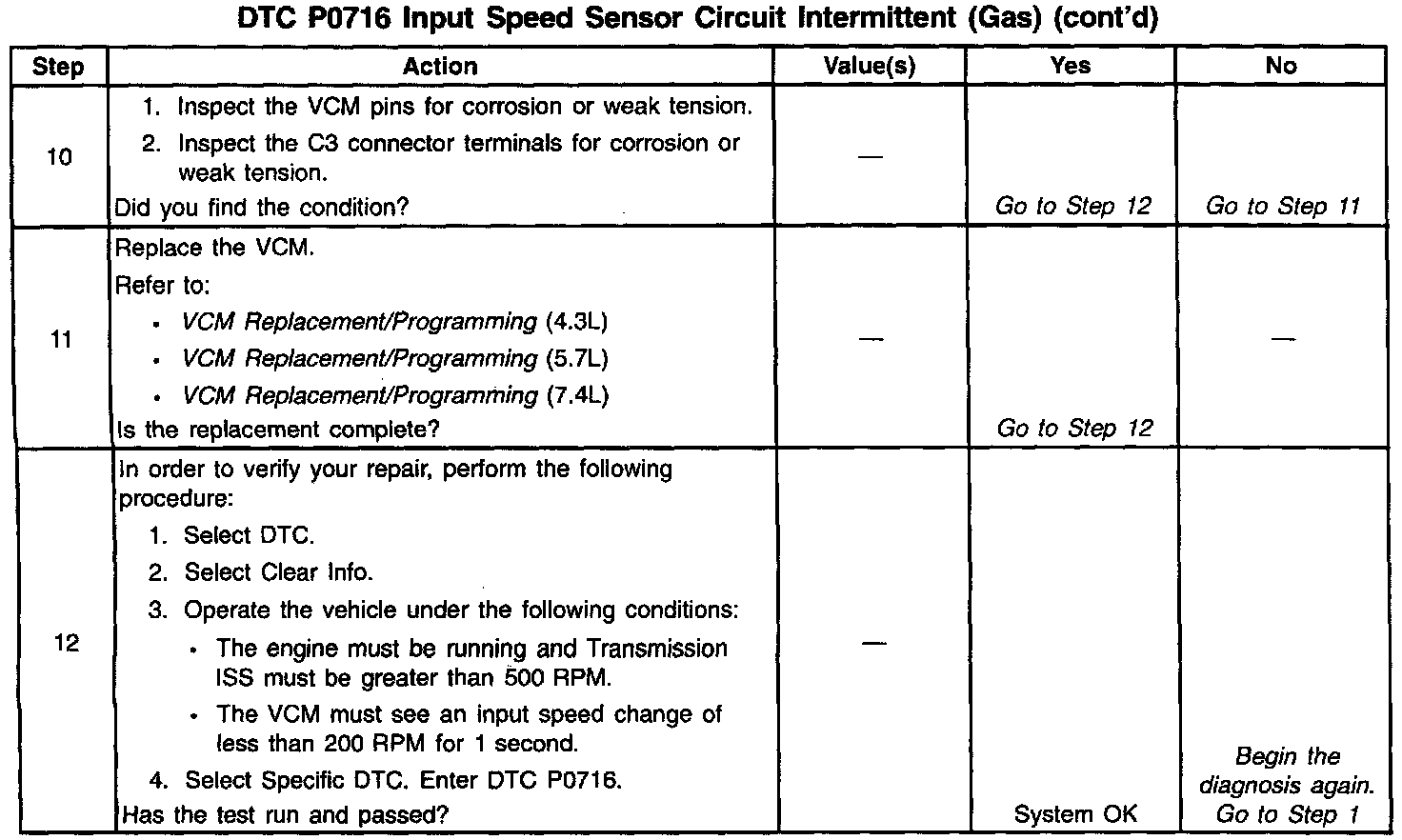

The numbers below refer to the step numbers on the diagnostic table.
2. This step tests for proper operation to the A/T ISS Sensor.
6. This step tests for proper A/T ISS circuit operation up to the VCM connections. Remove the fuel pump relay in order to eliminate a flooding condition during this step.
