PARK LP Fuse and Park Lamp Relay
PARK LP Fuse and Park Lamp Relay

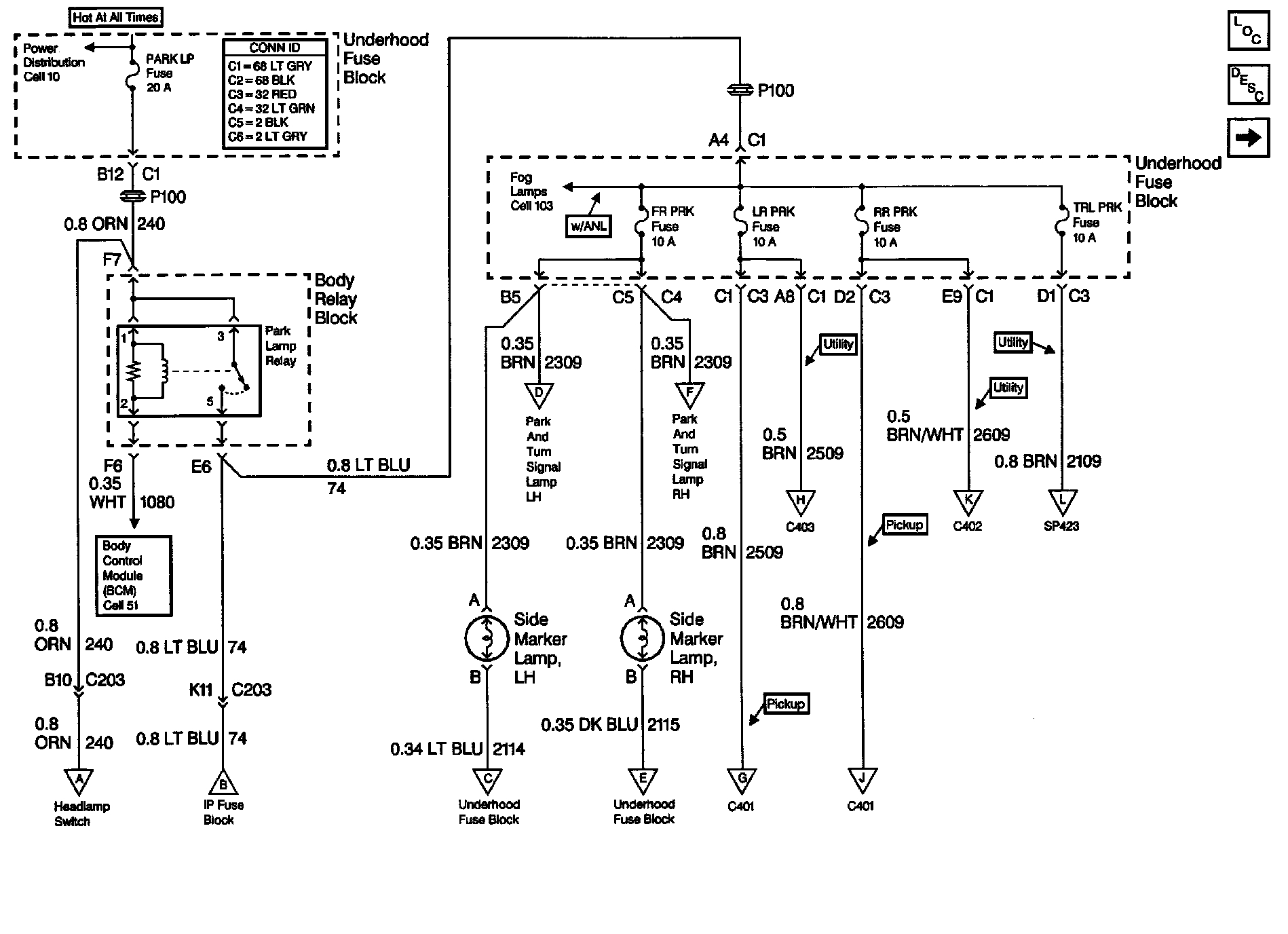

Exterior Lights Schematics: PARK LP Fuse and Park Lamp Relay:
