Oil Pressure Sensor: Service and Repair

Removal Procedure

^ Tools Required
- J 41712 Oil Pressure Sensor Socket

1. Remove the Engine Cover.
2. Disconnect the electrical connector.
3. Hold the oil pressure sensor fitting with a wrench.





4. Remove the oil pressure sensor using J 41712.

Important: Note the alignment of the oil pressure sensor fitting prior to removal.





5. Remove the oil pressure sensor fitting, if necessary.

Installation Procedure





1. Install the oil pressure sensor fitting, if removed.
1.1. Tighten the oil pressure sensor fitting to 15 Nm (11 ft. lbs.).

Important: Do not tighten more than one turn.

1.2. Tighten the fitting until properly align.

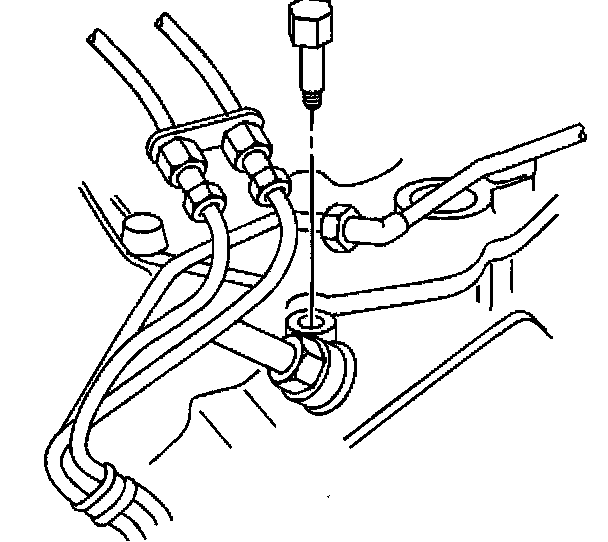

2. Install the oil pressure sensor.
3. Hold the oil pressure sensor fitting with a wrench to prevent from turning.
^ Using J 41712 tighten the oil pressure sensor to 30 Nm (22 ft. lbs.).
4. Install the electrical connector.
5. Install the Engine Cover.
