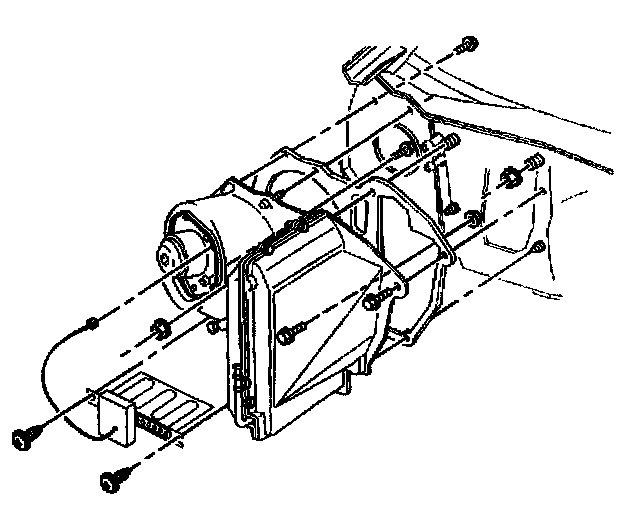

Blower Motor Resistor Replacement

REMOVAL PROCEDURE




1. Remove the air cleaner.
2. Remove the windshield washers and the coolant reservoir for access.
3. Disconnect the electrical connectors.
4. Remove the screws from the blower motor resistor.
5. Remove the blower motor resistor.

INSTALLATION PROCEDURE




1. Install the blower motor resistor.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the screws to the blower motor resistor.

Tighten
Tighten the screws to the blower motor resistor to 2 N.m (18 lb in).

3. Connect the electrical connectors.
4. Install the windshield washers and the coolant reservoir. Coolant Recovery Reservoir Replacement in Engine Coolant.
5. Ensure that the circuit operates properly.
6. Install the air cleaner.
