Turn Signal & Multifunction Switch - Assemble

Assembly Procedure

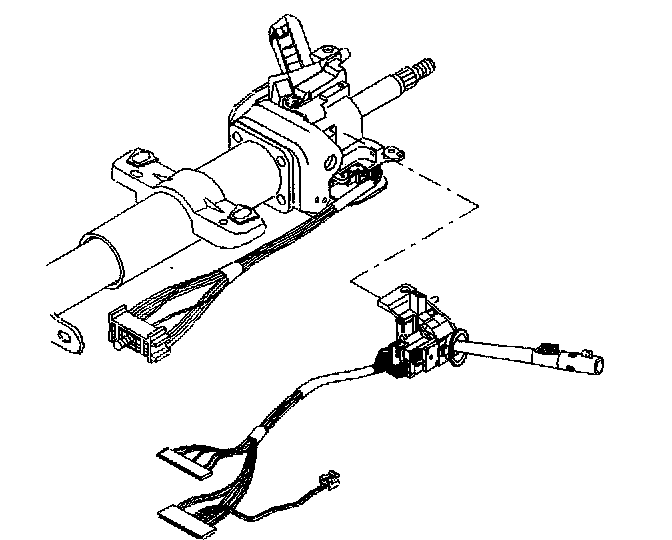

1. Install the turn signal and multifunction switch assembly.

Notice: Refer to Fastener Notice in Service Precautions.





2. Install the 2 pan head tapping screws.
Tighten the pan head tapping screws to 7 Nm (62 inch lbs.).





3. Slide the 2 connectors (2) onto the bulk head connector (1).





4. Install the wire harness strap (2) into the steering column tilt head assembly (1).
5. Install the wire harness straps (3) onto the wire harness assembly (4).
6. Install the wire harness assembly (4) into the wire harness strap (5).
7. Install the upper and lower shrouds. Refer to Steering Column Trim Covers - Assemble - Off Vehicle.
