Crankshaft Position Sensor: Service and Repair

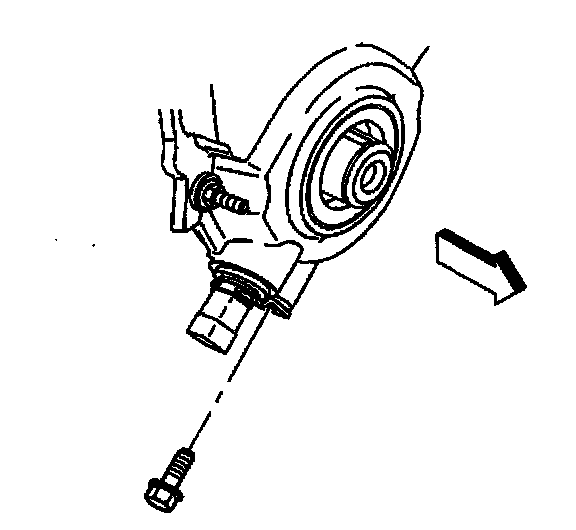

REMOVAL PROCEDURE




1. Remove the electrical connector.




2. Remove the sensor hold down bolt.




3. Remove the sensor from the timing cover.

IMPORTANT: When installing or removing a Crankshaft Position (CKP) sensor make sure the sensor is fully seated and held stationary in the front cover before torquing the hold down bolt into the front cover A sensor which is not seated may result in erratic operation and lead to the setting of false codes.

4. Inspect the sensor O-ring for wear, cracks, or leakage.
5. Replace if necessary. Lube the new O-ring with clean engine oil before installing.

INSTALLATION PROCEDURE

IMPORTANT: Make certain that the Crankshaft Position (CKP) sensor mounting surfaces are clean and free of burrs before installing the CKP sensor.




1. Install the sensor into the timing cover.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Install the sensor hold down bolt

Tighten
Tighten the hold down bolt to B N.m (71 lb in).




3. Install me electrical connector.
