Operation CHARM
: Car repair manuals for everyone.
Home
>>
GMC Truck
>>
2001
>>
C 3500 HD Truck 2WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Connectors By Component Name
>>
A/C Compressor Clutch Connector
A/C Compressor Clutch Connector

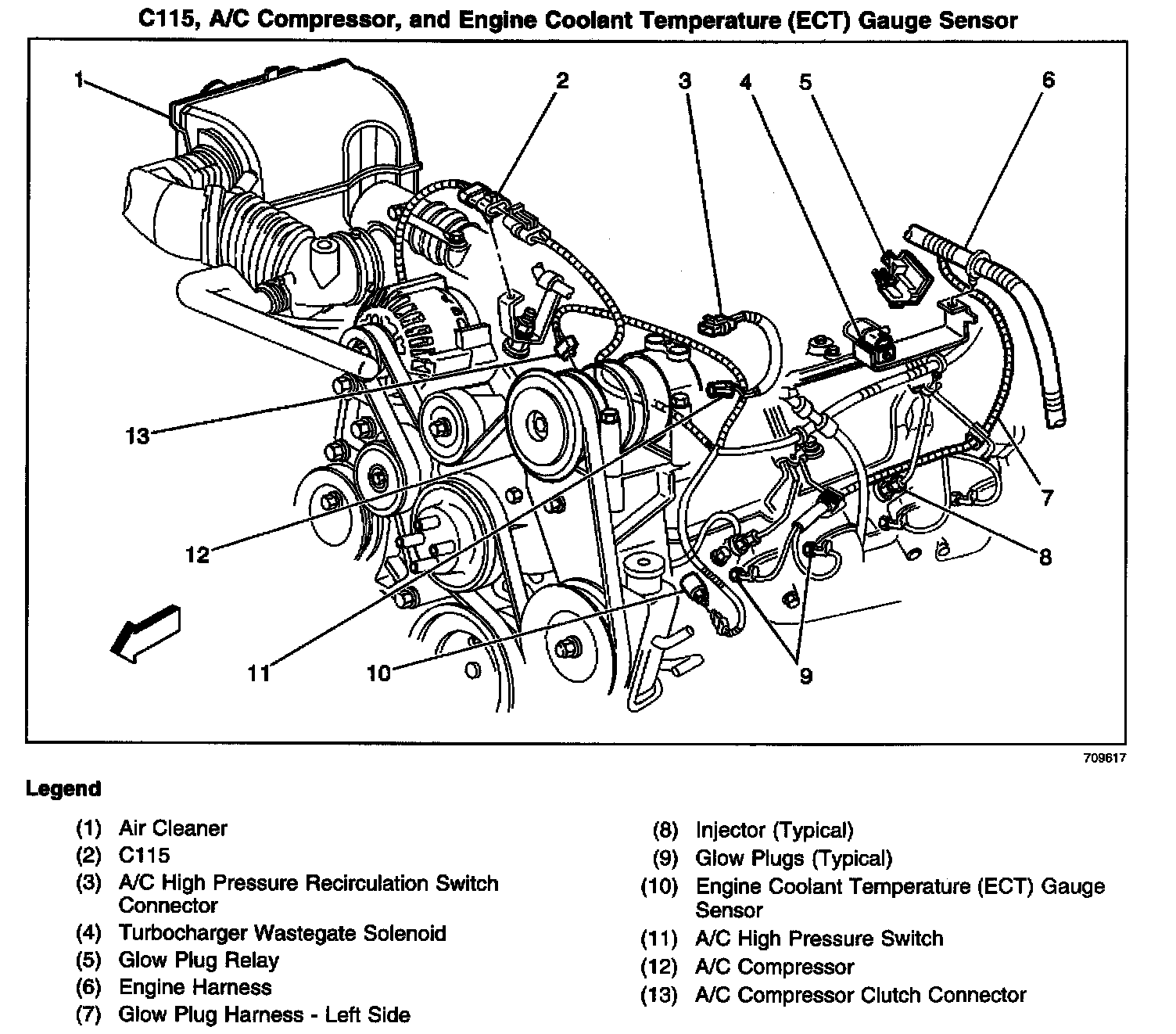

Locations View:
Locations View:
