Module Power, Grounding, And DLC; Lights And Horn Control
Module Power, Grounding, And DLC; Lights And Horn Control

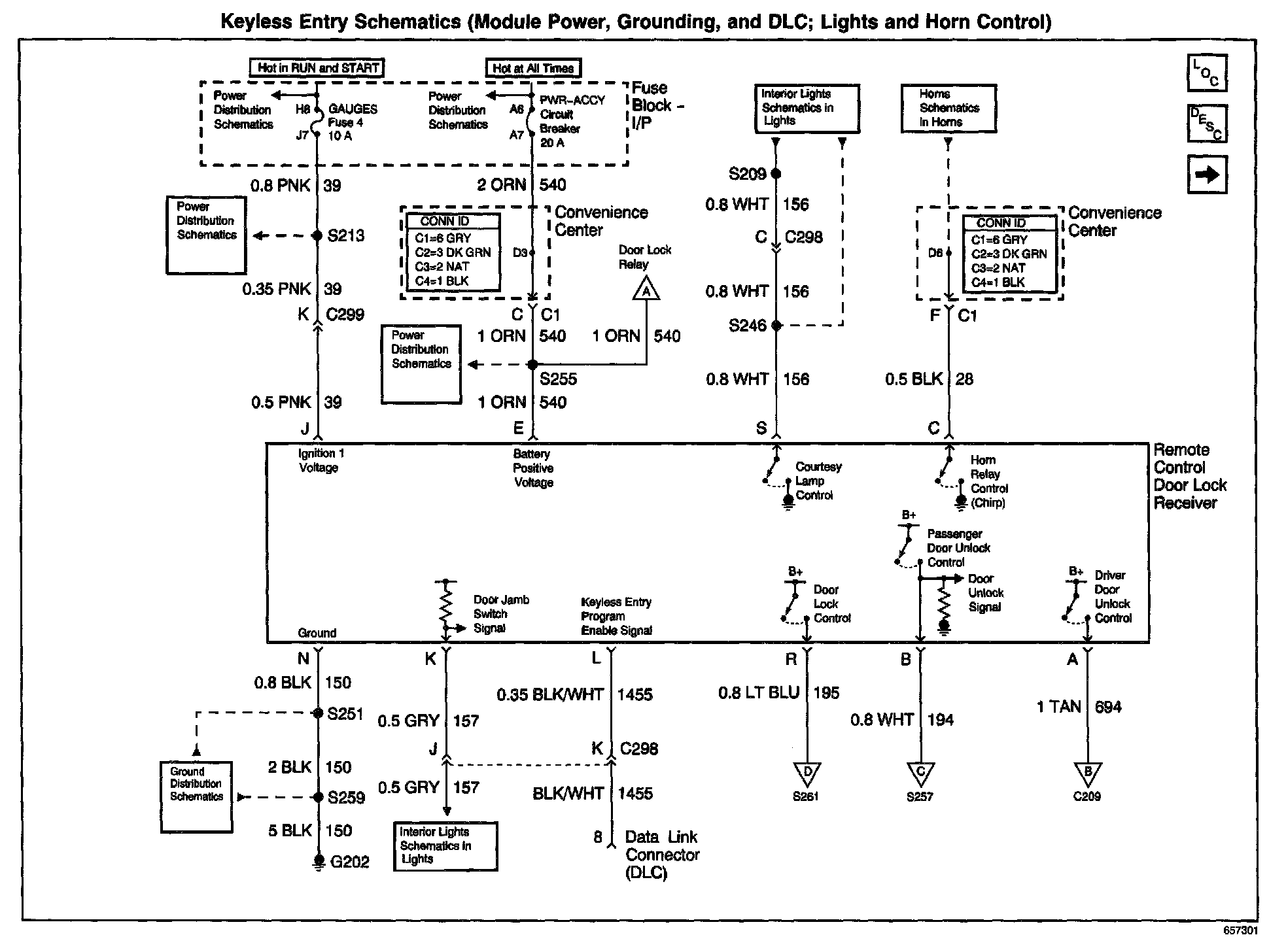

Keyless Entry Schematics: Module Power, Grounding, And DLC; Lights And Horn Control:
