Antenna Assembly Replacement - Cellular and Navigation

REMOVAL PROCEDURE

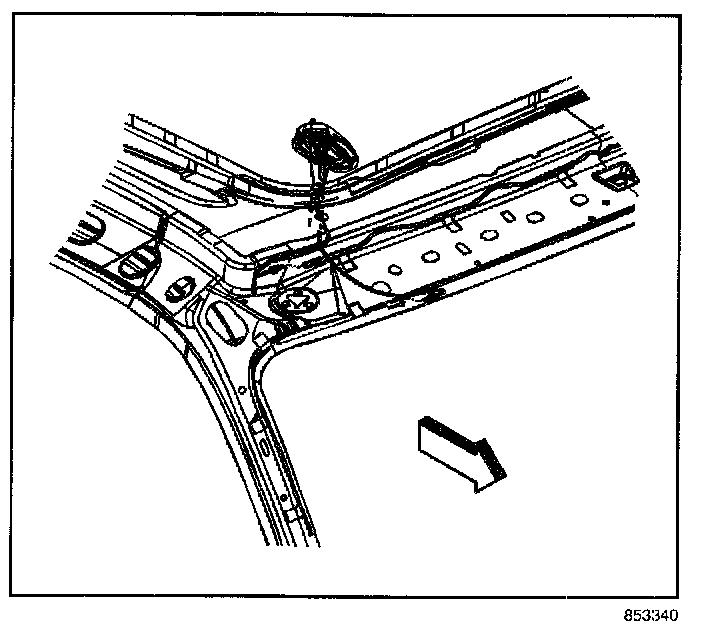

1. Lower the headliner.
2. Disconnect the wiring harness from the antenna.
3. Loosen the retaining nut till the antenna assembly can be pulled from the roof.

INSTALLATION PROCEDURE




1. Place the antenna assembly on the roof opening.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Tighten the retaining nut.

Tighten
Tighten the nut to 8 N.m (71 lb in)

3. Install the headliner.
