Home >> GMC Truck >> 2002 >> Savana 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> 4L80-E/4L85-E Automatic Transmission >> (Sensor, Solenoid and GND Controls)

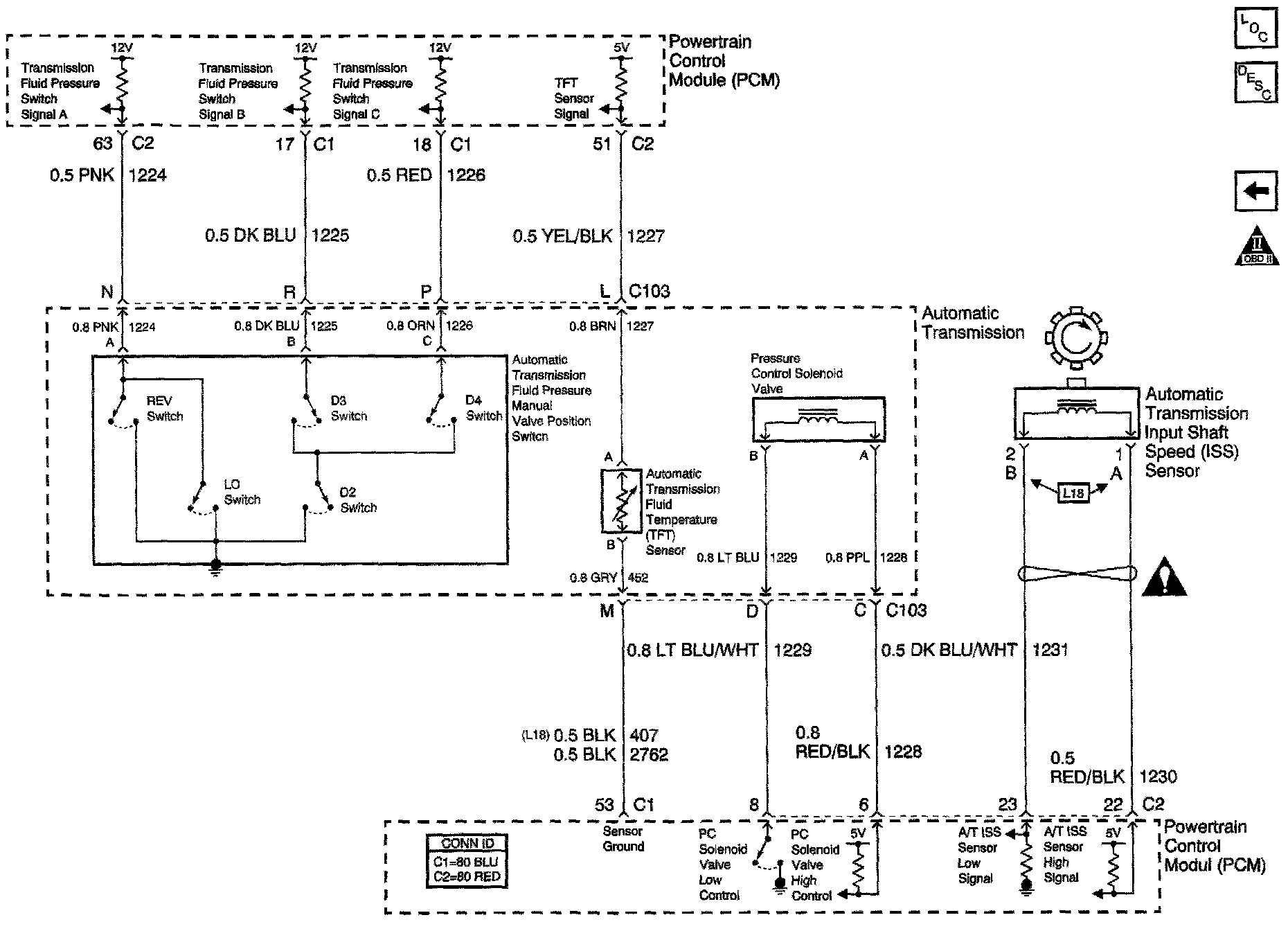

(Sensor, Solenoid and GND Controls)
