Wiper Inoperative - Rear

Steps 1-4:




Steps 5-9:




Steps 10-13:

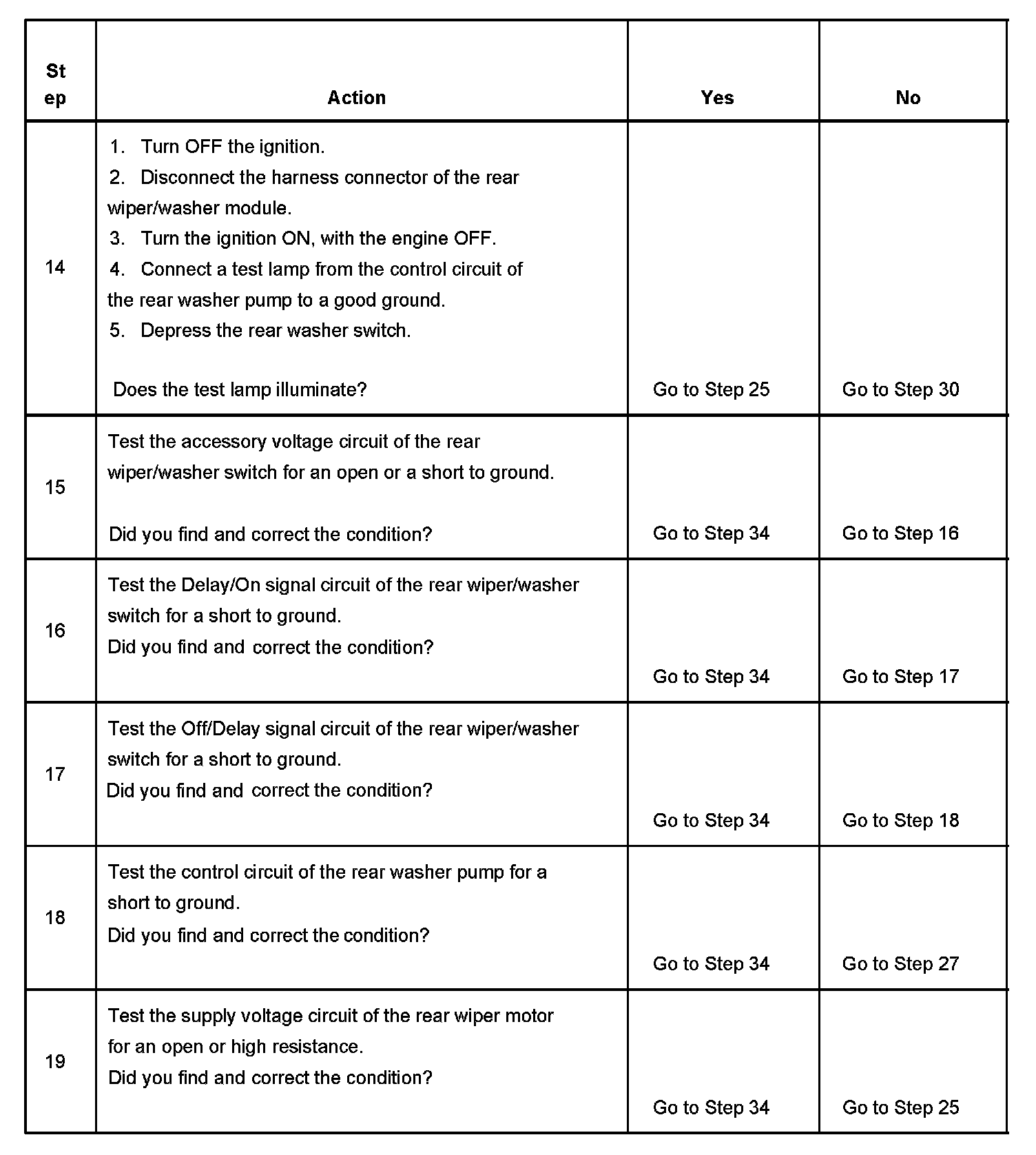

Steps 14-19:




Steps 20-26:




Steps 27-34:
