Home >> GMC Truck >> 2006 >> Yukon Denali AWD V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Headlamp >> Headlamp Alignment Actuator

Headlamp Alignment Actuator

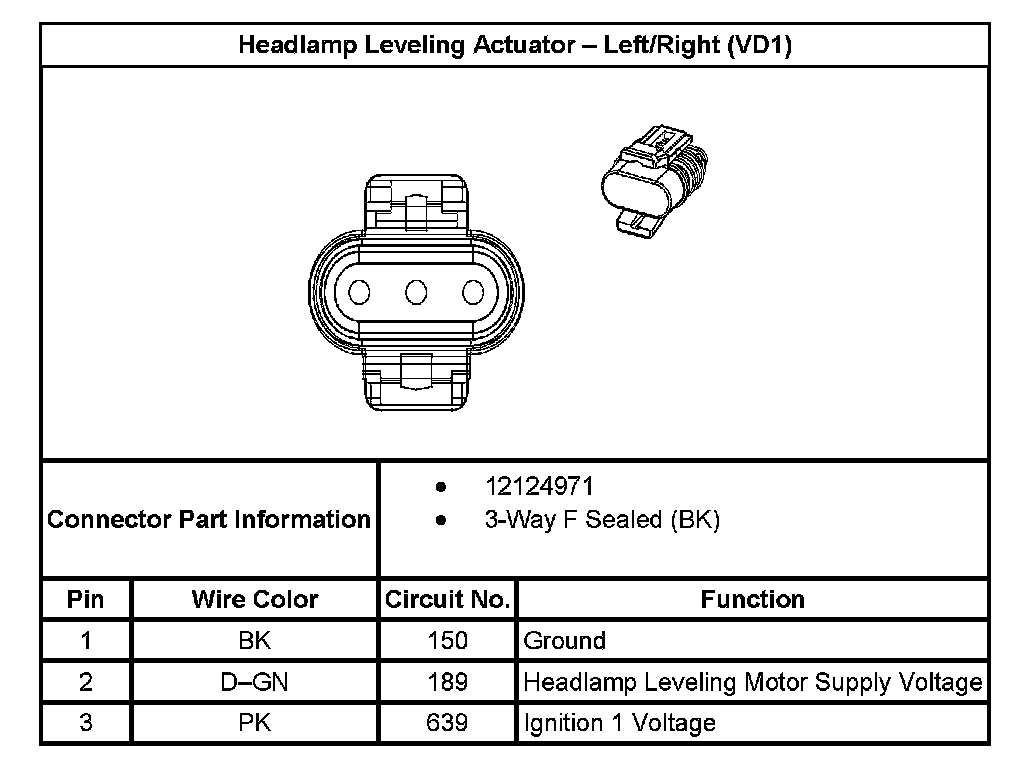

Headlamp Leveling Actuator - Left/Right (With RPO Code VD1):
