Part 2



SIR Connector End Views

Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)














Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (Crew Cab +ASF)














Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (Extended Cab +ASF)














Inflatable Restraint Side Impact Sensor (SIS) - Right Front (ASF)














Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (Crew Cab +ASF)














Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (Extended Cab +ASF)














Inflatable Restraint Steering Wheel Module X1














Inflatable Restraint Steering Wheel Module X2 (10 Series)














Inflatable Restraint Steering Wheel Module Coil X1

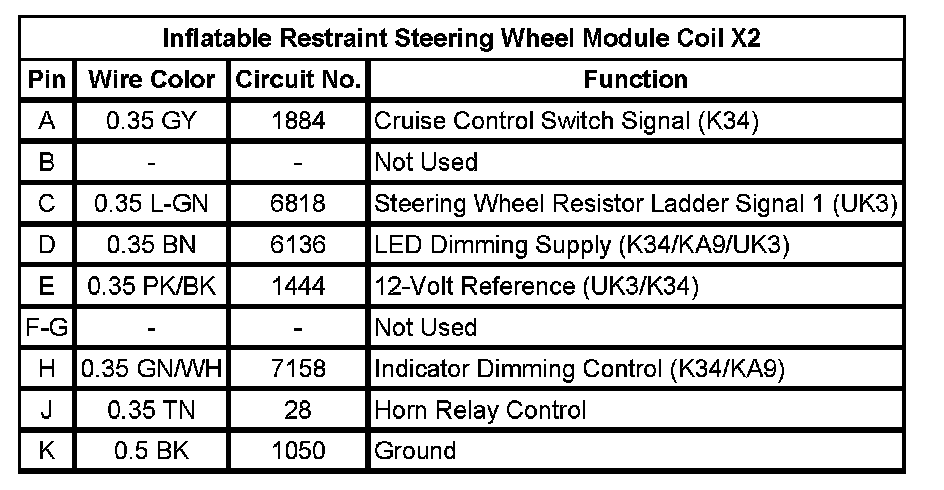

Inflatable Restraint Steering Wheel Module Coil X2














Inflatable Restraint Roof Rail Module - Left (Regular Cab +ASF)














Inflatable Restraint Roof Rail Module - Right (Regular Cab +ASF)














Inflatable Restraint Vehicle Rollover Sensor (ASF)














Seat Belt Pretensioner - Driver














Seat Belt Pretensioner - Passenger
