X307 Body Harness to Right Rear Seat Harness (ARS or KA6)
X307 Body Harness to Right Rear Seat Harness (ARS or KA6)
Inline Harness Connector End Views

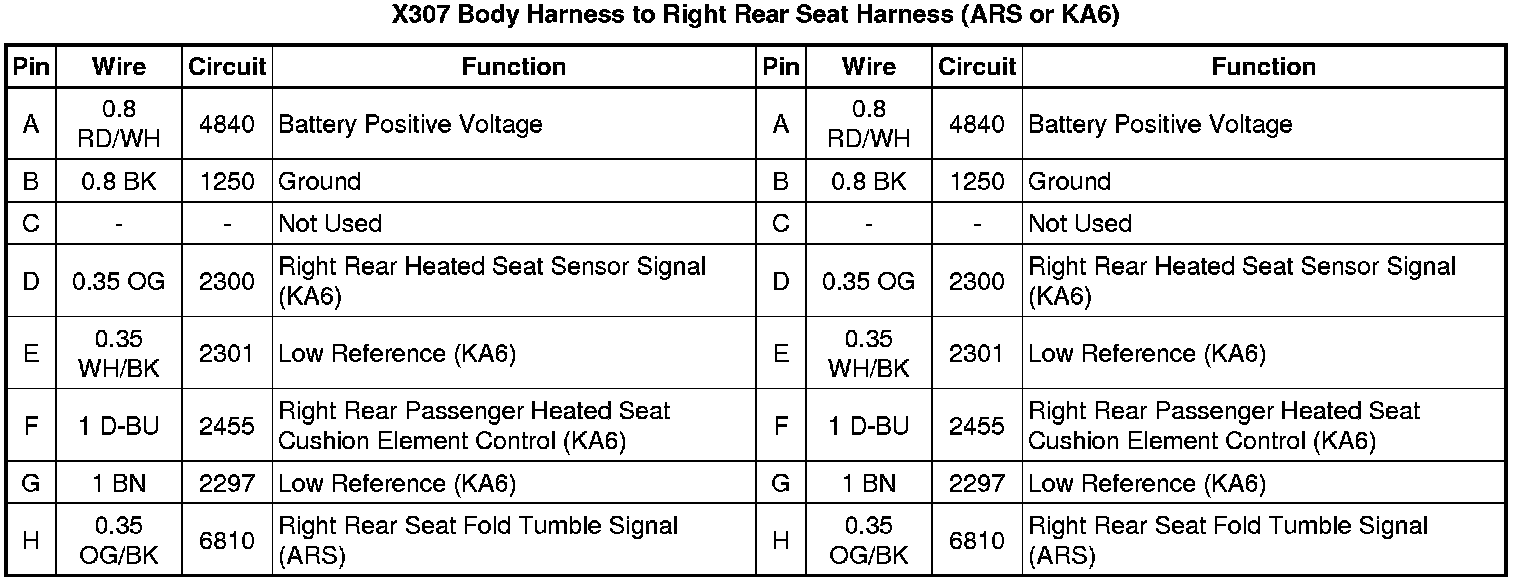

X307 Body Harness to Right Rear Seat Harness (ARS or KA6)
