Home >> Geo Truck >> 1995 >> Tracker 4x4 L4-1.6L SOHC VIN U TBI >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Exterior Lamps >> Park, Tail, Marker & License Plate

Park, Tail, Marker & License Plate

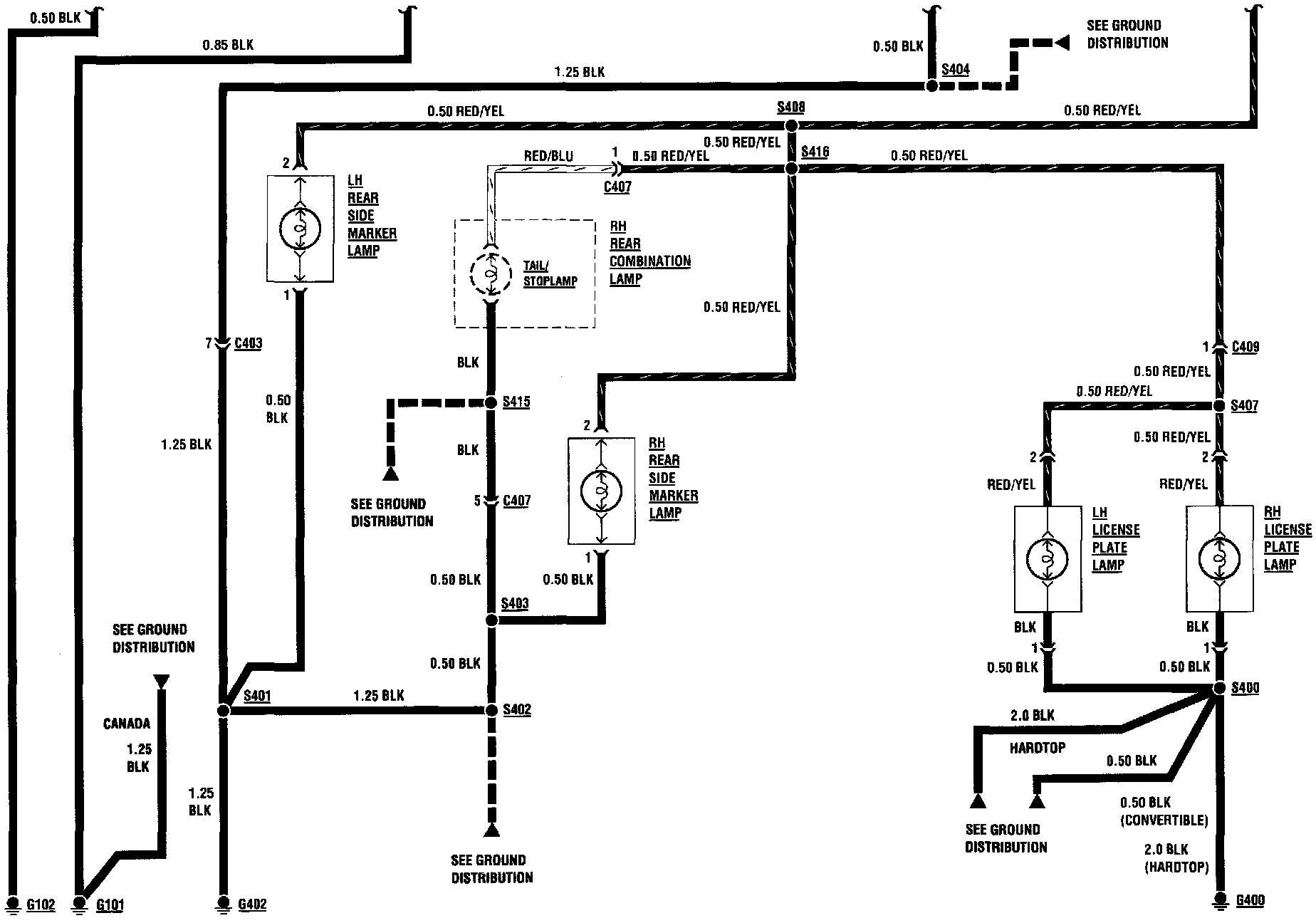

Exterior Lights: Park/Front Marker/Tail/Rear Marker/License Plate:



Exterior Lights: Turn & Hazard Cont.:
