Gearshift Control Lever
REMOVE OR DISCONNECT1. Two screws, two plastic retainers and rear console box from floor.
2. Two screws, two plastic retainers and front console box from floor.
3. Gearshift control lever knob from gearshift control lever by unscrewing counterclockwise.

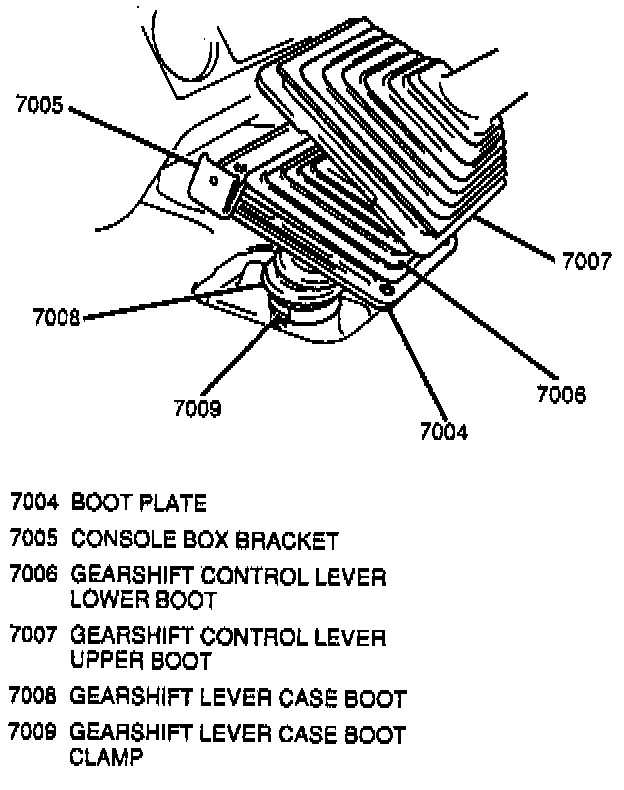

4. Gearshift control lever upper boot from gearshift control lever.
5. Four bolts, boot plate, console box bracket and gearshift control lever lower boot from gearshift control lever.
6. Clamp and gearshift lever case boot from gearshift lever case.
7. Gearshift control lever from gearshift lever case by pushing down on the gearshift control lever pivot and turning counterclockwise 90° (1/4 turn) and lifting up.
Inspect
1. Gearshift control lever for distortion or damage. Replace as necessary.
2. Gearshift control lever spring for distortion or damage. Replace as necessary.
3. Gearshift lever case boot for tears or damage. Replace as necessary.
INSTALL OR CONNECT
1. Gearshift control lever into gearshift lever case and pushing down on the shift control lever pivot and turning clockwise 90° (1/4 turn) and releasing.
2. Gearshift lever case boot to gearshift lever case; secure with clamp.
3. Gearshift control lever lower boot, boot plate and console box bracket onto gearshift control lever; secure with four bolts.
- Tighten gearshift control lever lower boot plate bolts to 7 Nm (62 inch lbs.).
4. Gearshift control lever upper boot onto gearshift control lever.
5. Gearshift control knob onto gearshift control lever by screwing clockwise.
6. Front console box to floor; secure with two plastic retainers and two screws.
7. Rear console box to floor; secure with two plastic retainers and two screws.
