Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda Truck
>>
2008
>>
CR-V 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Timing Components
>>
System Specifications
System Specifications

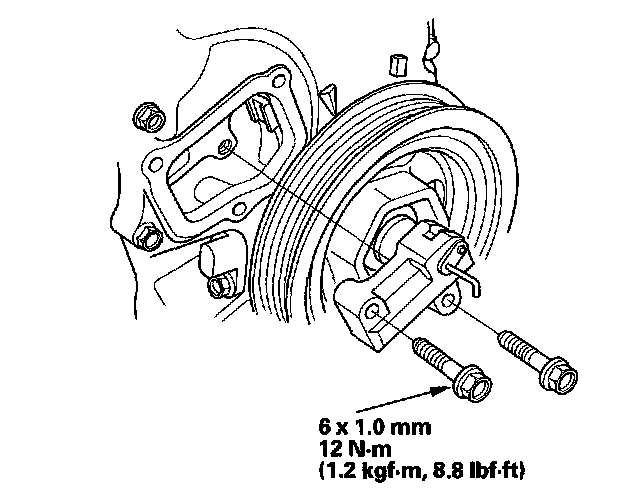

Timing Chain Tensioner
Crankshaft Pulley
Torque
49 N-m (5.0 kgf-m, 36 lbf-ft)
Tighten
additional 90°.
Cover
