Trailer Lighting Module
Trailer Lighting Module

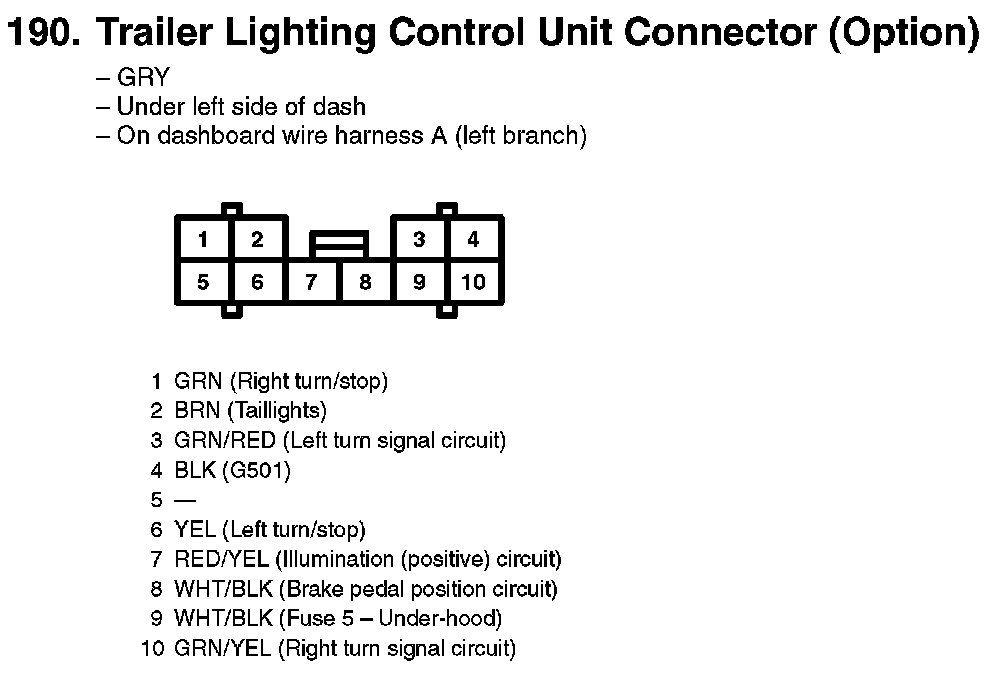

190. Trailer Lighting Control Unit Connector (Option):
