Component Location Index

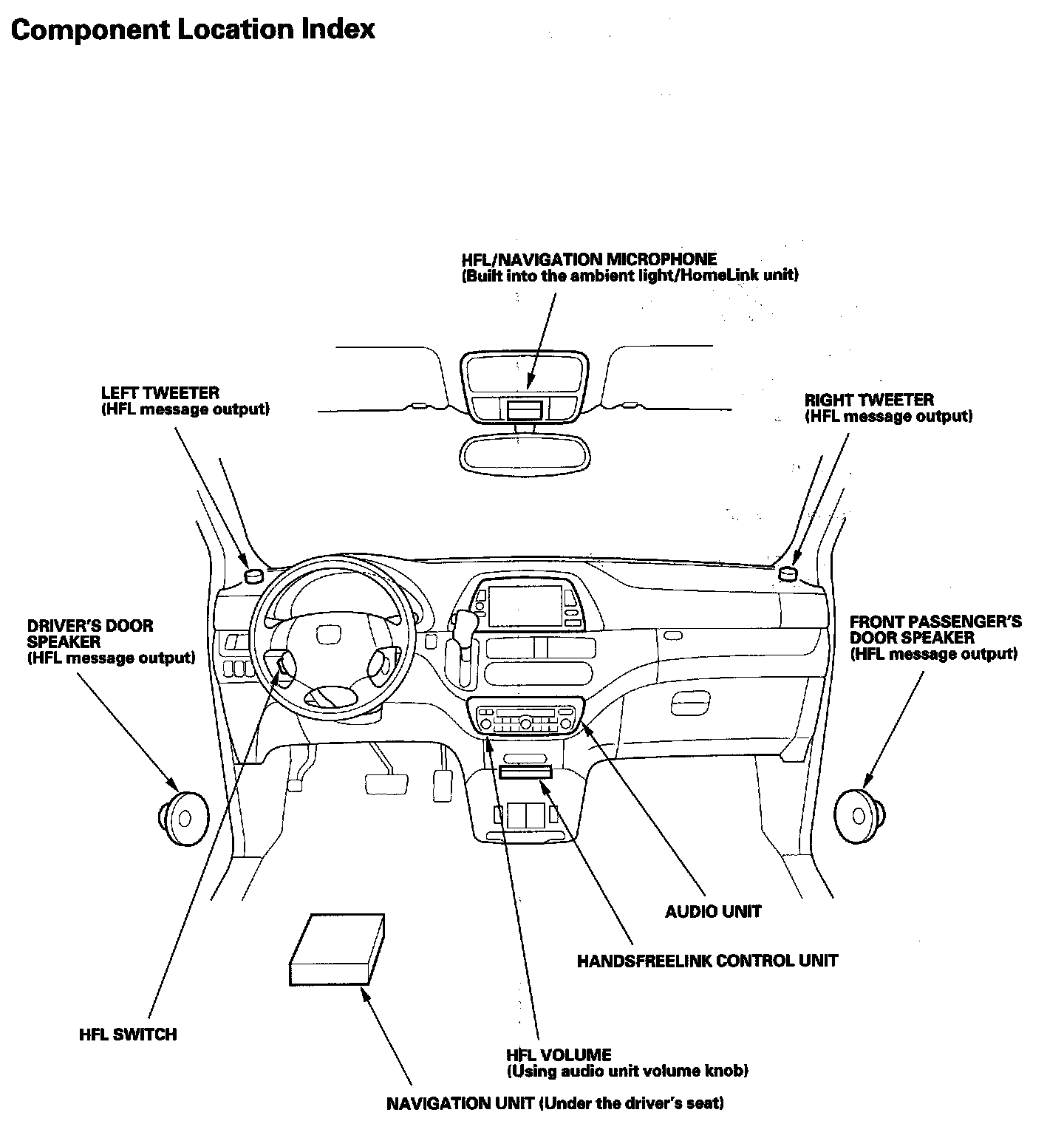

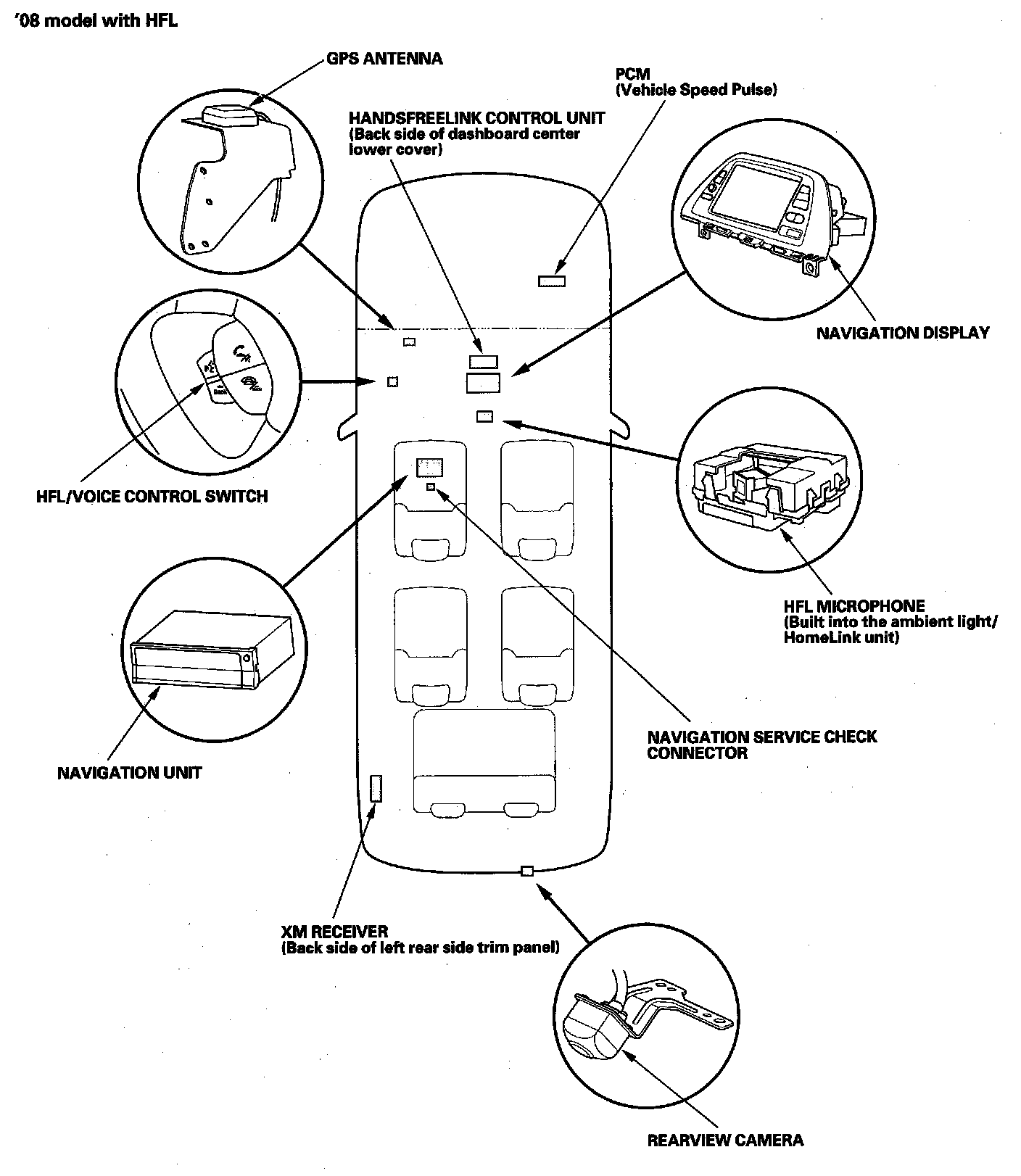

Navigation System Component Location Index:

HandsFreeLink System Component Location Index:

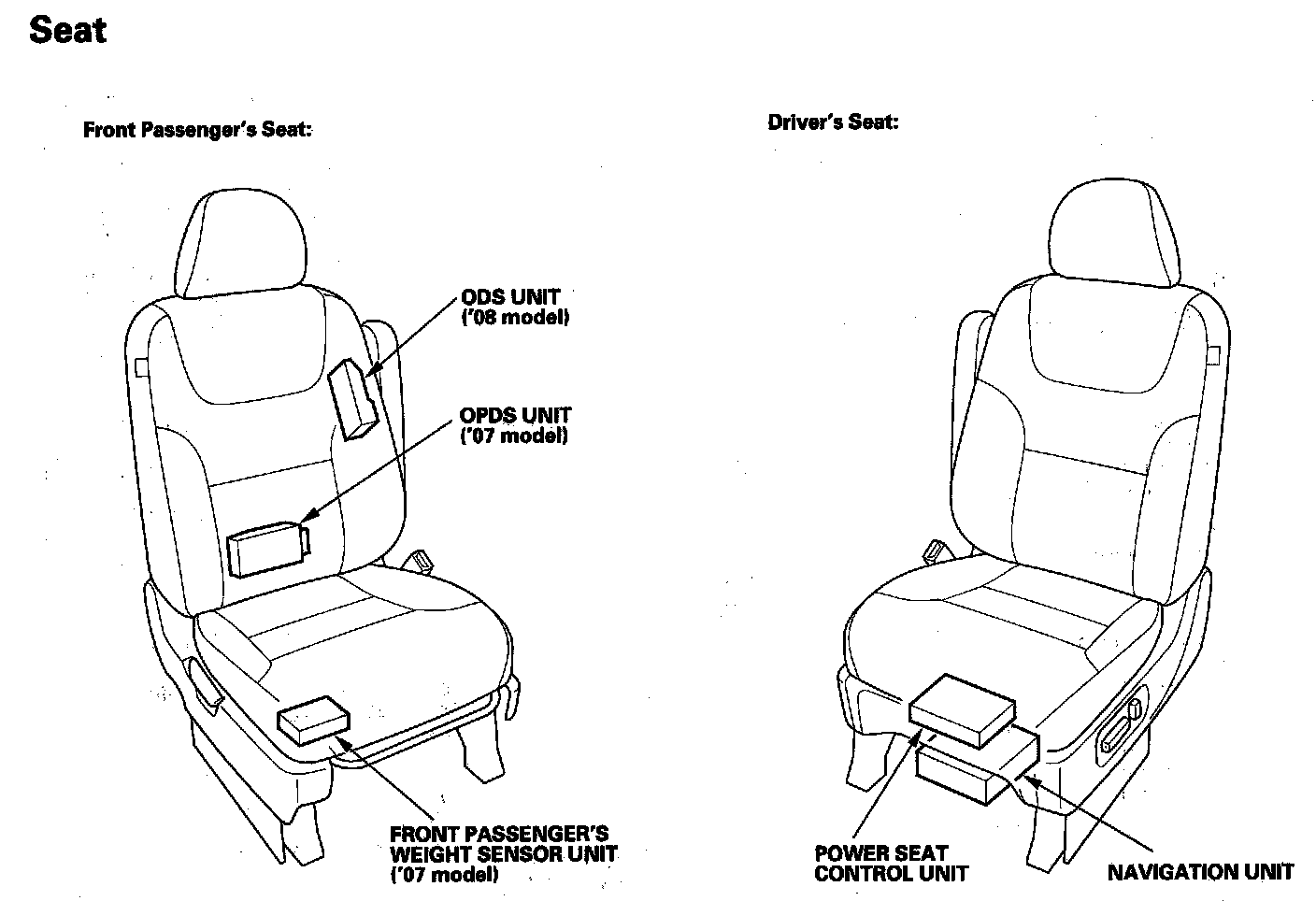

Relay And Control Unit Locations Seat:
