Honda Truck
>>
2008
>>
Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Collision Avoidance Sensor
Collision Avoidance Sensor

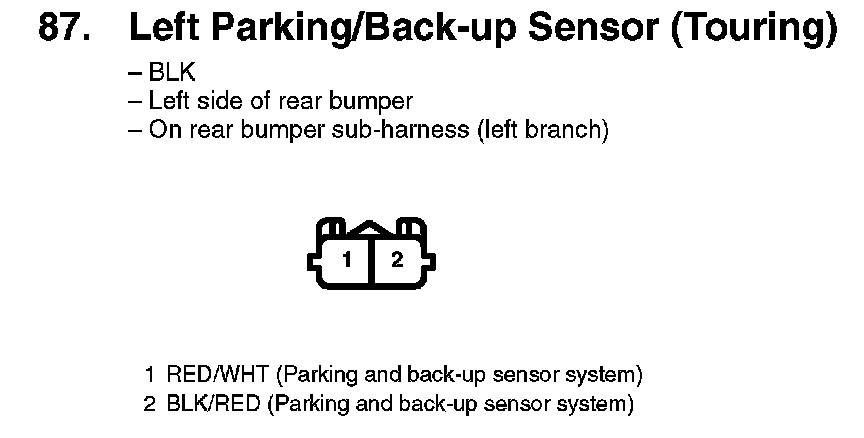

87. Left Parking/Back-up Sensor (Touring):

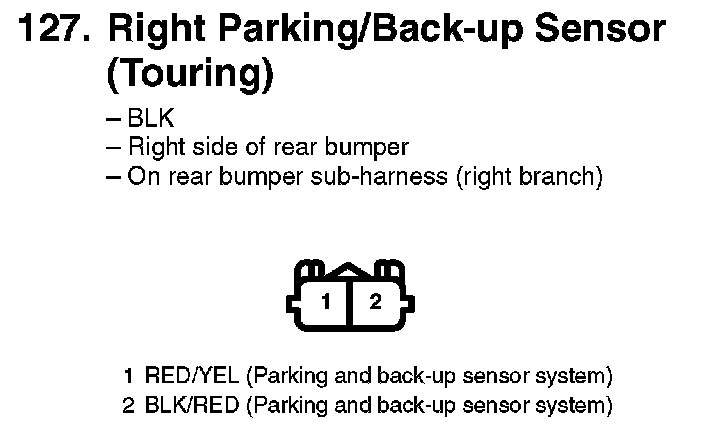

127. Right Parking/Back-up Sensor (Touring):
