EGR Valve: Service and Repair

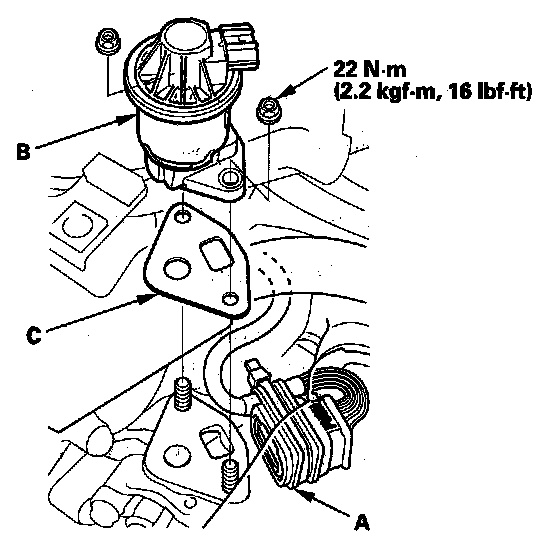

EGR Valve ReplacementJ35A6 engine, J35A7 engine ('07 model)
1. Remove the engine cover.
2. Disconnect the EGR valve 6P connector (A).
3. Remove the EGR valve (B).
4. Install the parts in the reverse order of removal with a new gasket (C).

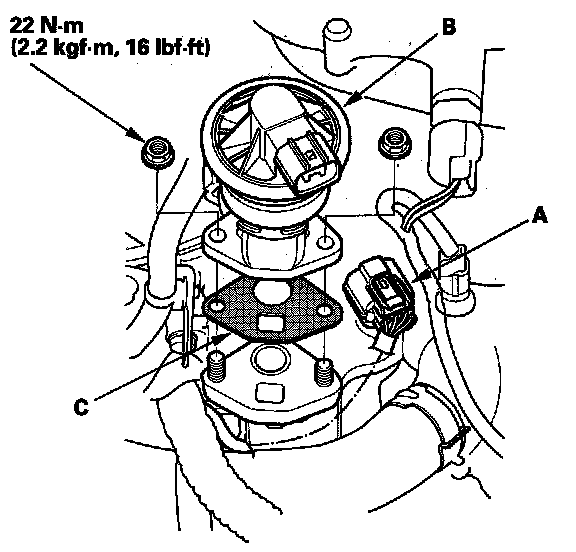

EGR Valve Replacement
J35A7 engine ('08 model)
1. Remove the engine cover.
2. Disconnect the EGR valve 5P connector (A).
3. Remove the EGR valve (B).
4. Install the parts in the reverse order of removal with a new gasket (C).
