Alignment

Caster

Caster angle 2°32'±1°

Camber

Front 0°00' ±30°

(Maximum difference between the front left and right side: 0°30')

Rear -0°30' ± 45°

Toe-in

Front toe-in 0 ± 2 mm (0 ± 0.08 in.)

Rear toe-in 2 ± 2 mm (0.08 ± 0.08 in.)

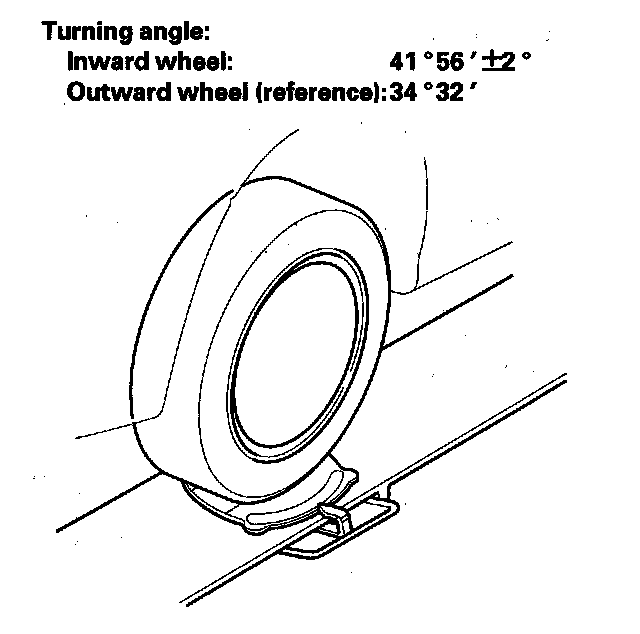

Turning Angle
